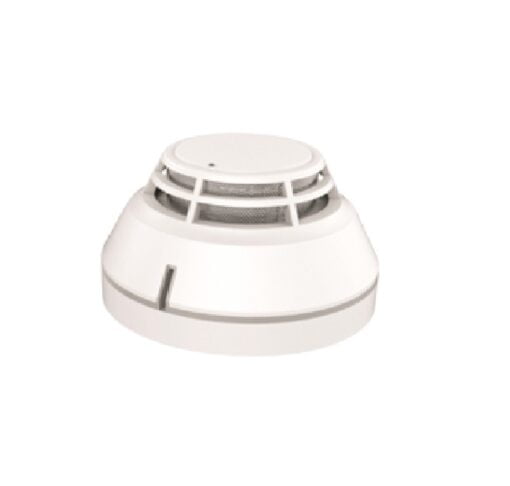

ASENWARE ADDRESSABLE SMOKE DETECTOR-LPCB (AW-D301)
₱3,770.00
Product overview
addressable photoelectric smoke detector (Detector hereunder) is a kind of photoelectric smoke detector. With an internal microprocessor, it supports electronic coding and is accessed through AW-FP300 fire alarm control panel via a two-wire bus. The detector realizes real-time acquisition of the in situ smoke concentration data and sends back the data to a fire alarm control panel. It can also receive and execute the control commands given by a fire alarm control panel.
The detector is suitable for such industrial and civil buildings that have a great deal of smoke during fires but no smoke under normal circumstances, such as restaurants, hotels, teaching buildings, office buildings, computer rooms, communication machine rooms, libraries and archives. It is not suitable for places with a great deal of retained dust and water mist, places where steam and/or oil mist may be generated and places with retained smoke under normal circumstances.
Product Features
Addressable Fire Alarm Smoke Detector Features:
1) It can realize electronic coding and rewrite the address via coder in situ.
2) Within a single-chip microcomputer, it can process the sampling data in real-time, save the latest 144 historical data and realize a curve tracing for the field situation.
3) It has a temperature, humidity and dust accumulation drift compensation function and a sensor fault detection function (fault reporting to fire alarm control panel)
4) Non-polarity, two-bus connection that ensures convenient installation and maintenance.
5) Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.
6) Built-in remote indicator output terminal, drive remote indicator lit when fire alarm
Technical parameters
Addressable Fire Alarm Smoke Detector Technical parameters:
| Operating Voltage | Loop 24V(18V～28V) |
| Standby Current | ＜0.3mA |
| Alarm Current | ＜1.5mA (without remote indicator) ＜3.5mA (with remote indicator) |
| Fire LED | Red, Flash in polling, and illuminate in alarming. |
| Remote indicator output | Polarity-sensitive output, directly connect to remote indicator (built in 10k resistor in series, max. output current is 2mA); The red indicator will blink in the monitoring status or remain lit in the alarm status. |
| Programming | Electronically addressed. |
| Programming Range | Occupying one address within 1～324. |
| Wiring | Loop: two wire, polarity-insensitive |
| Environmental Temperature | -10℃～+55℃ |
| Relative Humidity | ≤95%, non-condensing |
| Material of Enclosure | ABS |
| Dimension | Diameter: 100mm Height: 58mm (with the base) |
| Mounting Hole Distance | 44.5mm～64.3mm |
| Weight | About 128g(with base) |
| Operating Voltage | Loop 24V(18V～28V) |
