2. The main line end receives two main lines, No polarization
3. Connect the power end to DC24V power line.

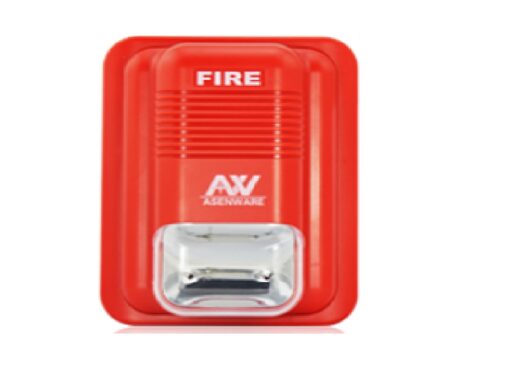

Model | AW-CSS2166-2 |
Operating Voltage | Zone 24V |
Operating current | ≤60mA |
Alarm SPL | ≥85dB |
Flash Period | 1 Time/Sec |
Environmental | Temperature range: -5 to 40°C (23~104°F) Humidity: 5 to 95% RH, non-condensing |
Protection class | IP30 |
Materials and colors | ABS red |
Application | For indoor use only |
Mating Host | AW-CFP2166 fire alarm control panel |
Size | 154mm* 115mm* 50.5mm |
Weight | About 165g |
