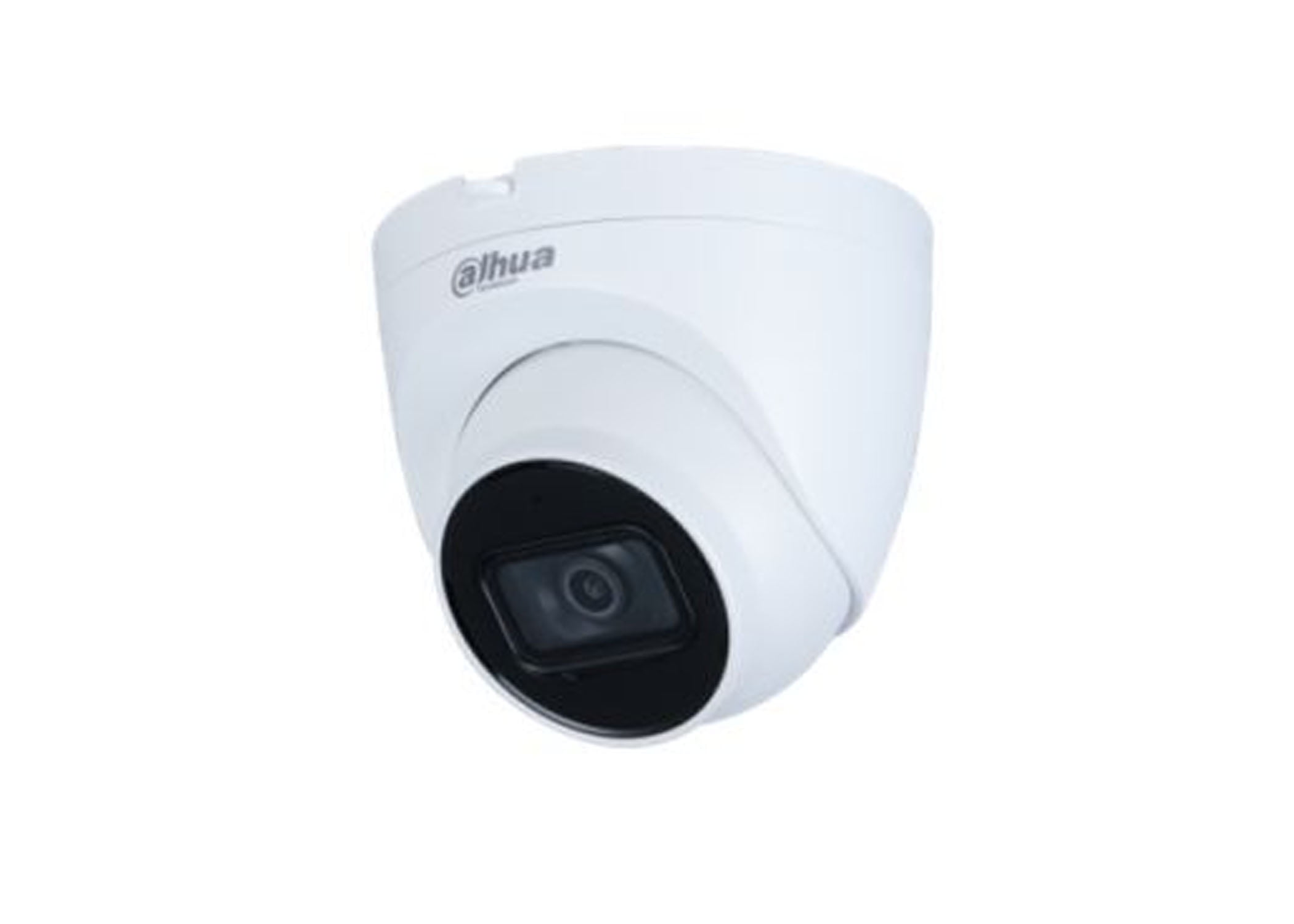

DAHUA 2MP Lite IR Fixed-focal Eyeball Network Camera (DH-IPC-HDW2230TN-AS-S2)

Camera
Image Sensor
1/2.7” 2Megapixel progressive CMOS
Max. Resolution
1920 (H) × 1080 (V)
ROM
128 MB
RAM
128 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination
0.005 Lux @ F1.6
S/N Ratio
>56 dB
Illumination Distance
30 m (98.43 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
2 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
2.8 mm
3.6 mm
Max. Aperture
F1.6
F1.6
Field of View
2.8 mm:
Horizontal 110.0° × Vertical 59.0° × Diagonal 132.0°
3.6 mm:
Horizontal 91.0° × Vertical 48.0° × Diagonal 109.0°
Iris Type
Fixed
Close Focus Distance
2.8 mm: 0.6 m ( 1.97 ft )
3.6 mm: 1.1 m ( 3.61 ft )
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
37.3 m (122.38 ft)
14.9 m
(48.88 ft)
7.5 m
(24.61 ft)
3.7 m
(12.14 ft)
3.6 mm
53.3 m (174.87 ft)
21.3 m (96.88 ft)
10.7 m
(35.10 ft)
5.3 m
(17.39 ft)
Smart event
IVS
Tripwire; intrusion
Video
Video Compression
H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec
Smart H.265+/ Smart H.264+
Video Frame Rate
Main stream:
1920 × 1080 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps)
Stream Capability
2 streams
www.dahuasecurity.com
Resolution
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night
Auto(ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
DWDR
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Auto/Manual
Noise Reduction
3D NR
Motion Detection
Disable/Enable (4 areas, rectangle)
Region of Interest (RoI)
Yes (4 areas)
Smart Illumination
Yes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)
Mirror
Yes
Privacy Masking
4 areas
Audio
Built-in MIC
Yes
Audio Compression
G.711A; G.711Mu; G.726
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception
Network
Network
RJ-45 (10/100 Base-T)
SDK and API
Yes
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host
20
Storage
FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser
IE
Google
Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Phone
IOS; Android
