Technical Specification

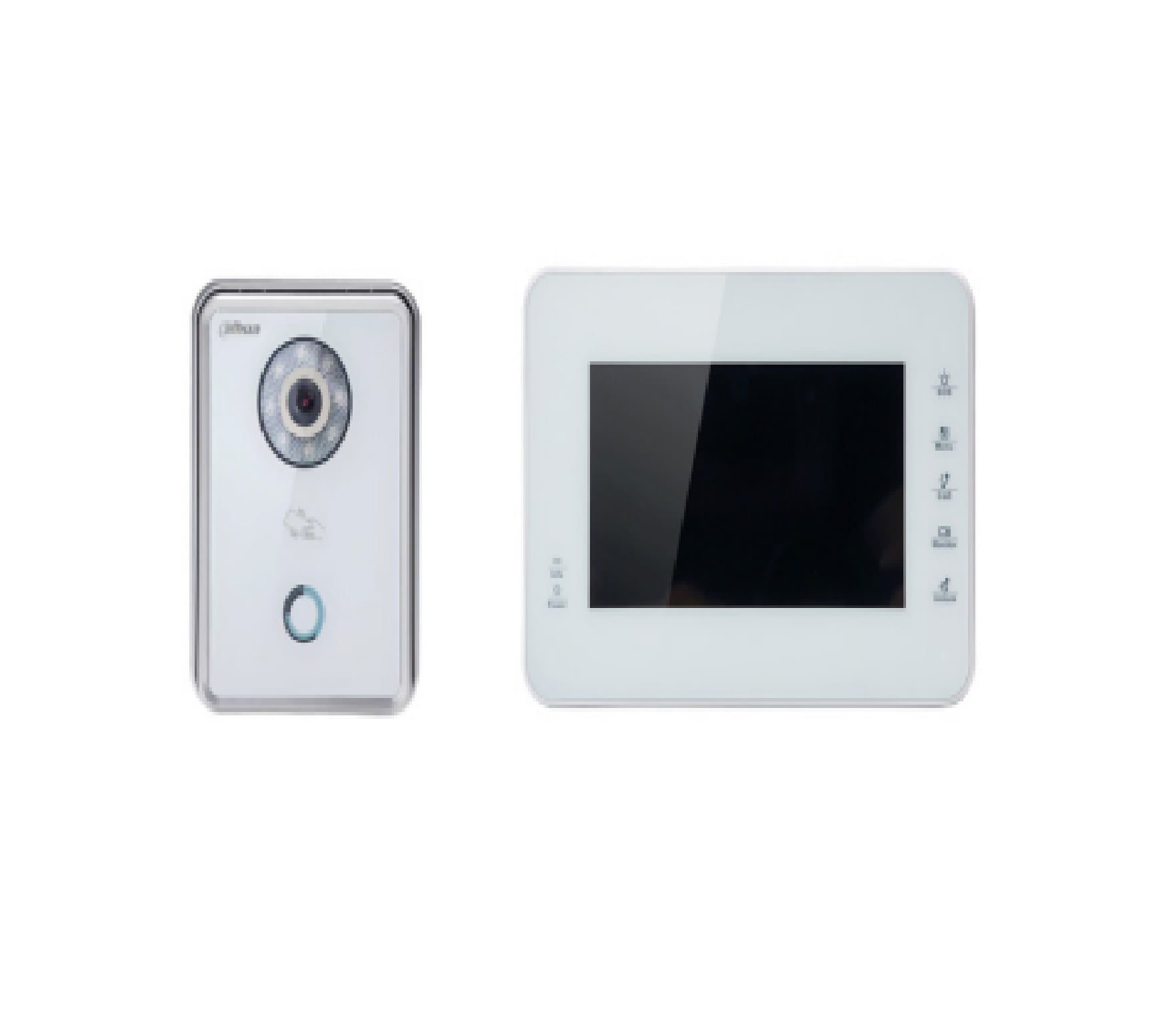

Video Outdoor Station
Model VTO6210BW
System
Main Processor Embedded Micro Processor
Operation System Embedded LINUX OS
Video
Video Compression H.264
Image Sensor 1/4” 1MP CMOS
Lens 3.6mm
Angle of View D:70° H:60°
Day/Night Color Image
Audio
Audio Compression G.711
Audio Input Omnidirectional Mic
Audio Output Built-in Speaker
Bidirectional Talk Support Dual-way Bidirectional talk
Operation Mode
Keypad Single Touch Button
Reader Mifare Card
Interface
Door Control 2(1 relay out for main lock, 1 extended by access
control module)
Alarm In 2(1ch unlock button, 1ch feedback)
RS485 1
Network
Ethernet 10M/100Mbps Self-adaptive
Network Protocol TCP/IP
General
Ingress Protection IP65
Tamper Switch 1
Installation Surface
Material Tempered Glass
Power DC 12V, or supply directly by VTNS1060A
Power Consumption Standby ≤1W, Work ≤10W
Working Temperature -30°C~+60°C
Relative Humidity 10%~90%RH
Dimensions 154.2mm×114.2mm×43.0mm
Weight 0.6Kg
Video Indoor Monitor
Model VTH1560BW
System
Main Processor Embedded Micro Process
Operation System Embedded LINUX OS
Video
Video Compression H.264
Audio
Audio Compression G.711
Audio Input All-direction Microphone
Audio Output Built-in Loudspeaker
Bidirectional Talk Support Dual-way Bidirectional talk
