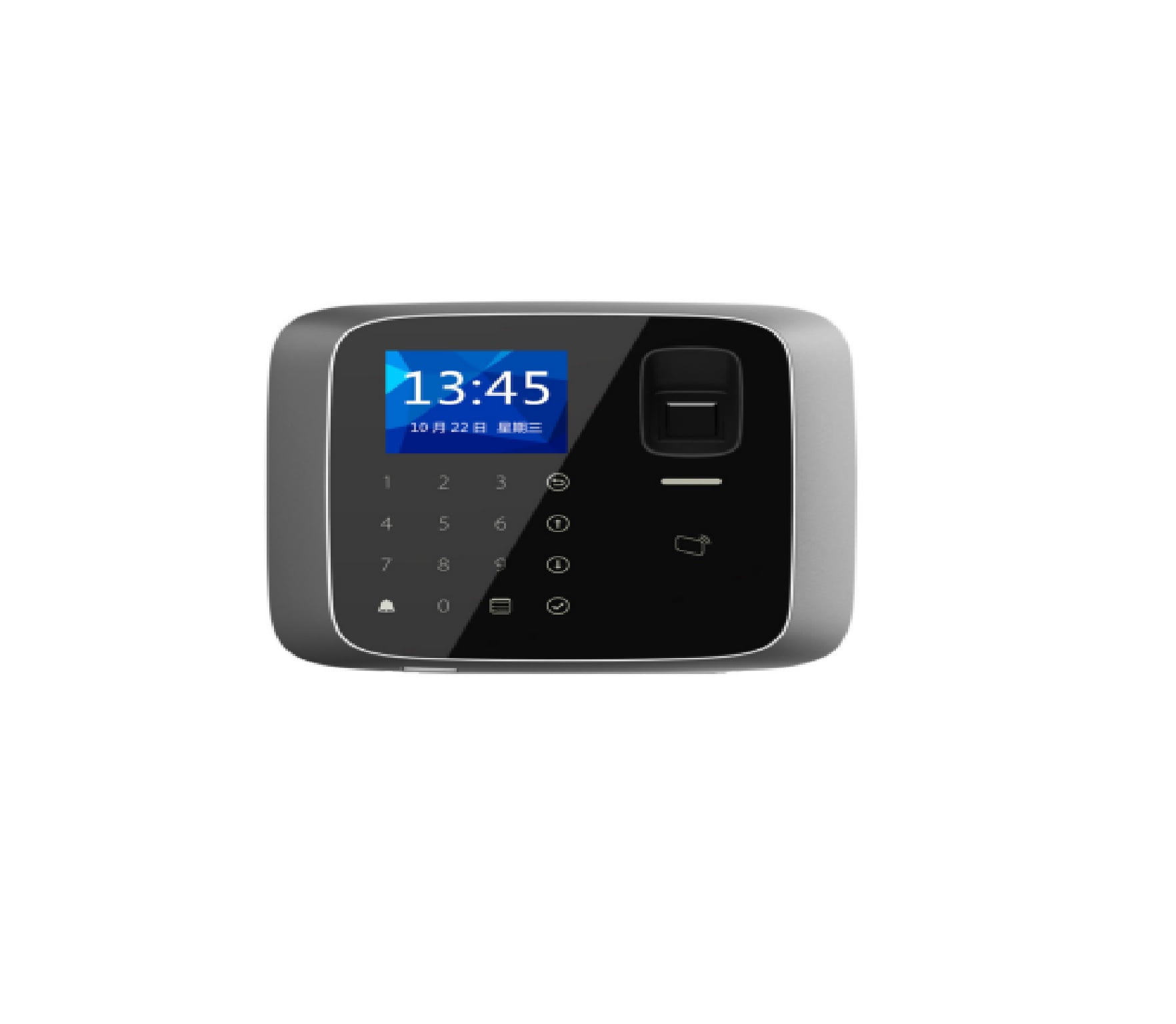

Technical Specification
System
Main Processor 32 Bit
Memory 16M
Input/Output Ports
Input Door sensor x 1, Exit button x 1, Alarm input x 1
Output Relay:Door lock x 1
TTL: Bell x 1, Alarm x 2
Card Read
Read Format 13.56MHz(Mifare)/125KHz(“-D” EM, Optional)
Read Range 3-8cm (max.)
Response Time <0.1s
Fingerprint Read
Response Time ≤0.5s
Recognition Time ≤1.5s
FAR ≤0.00004%
FRR ≤0.15%
Capacity
Card holders 30,000
Events 150,000
Fingerprint 3000
Function
Access control Anti-passback, Multi-door interlock, Multi-card
unlock
User Management General, VIP, Guest, Patrol, Black list, Duress
Alarm Function Door time out alarm, Intrusion alarm, Duress alarm,
Tamper alarm
Schedule Setting Support 128 groups of schedule, 128 groups of
period and 128 groups of holiday period
Interface
To PC RJ45(10/100M)
To Reader Wiegand/ RS485
Genreal
RTC Yes
Voice Prompt Yes
Beep Tone Buzzer
Keyboard Sensitive touch keypad with blue backlight
Power Supply 9-15DC/200mA
Working Environment -5°C-+55°C
Working Humidity ≤95%
Dimension(W×D×H) 192mm*32mm *160mm
Weight 0.7Kg
