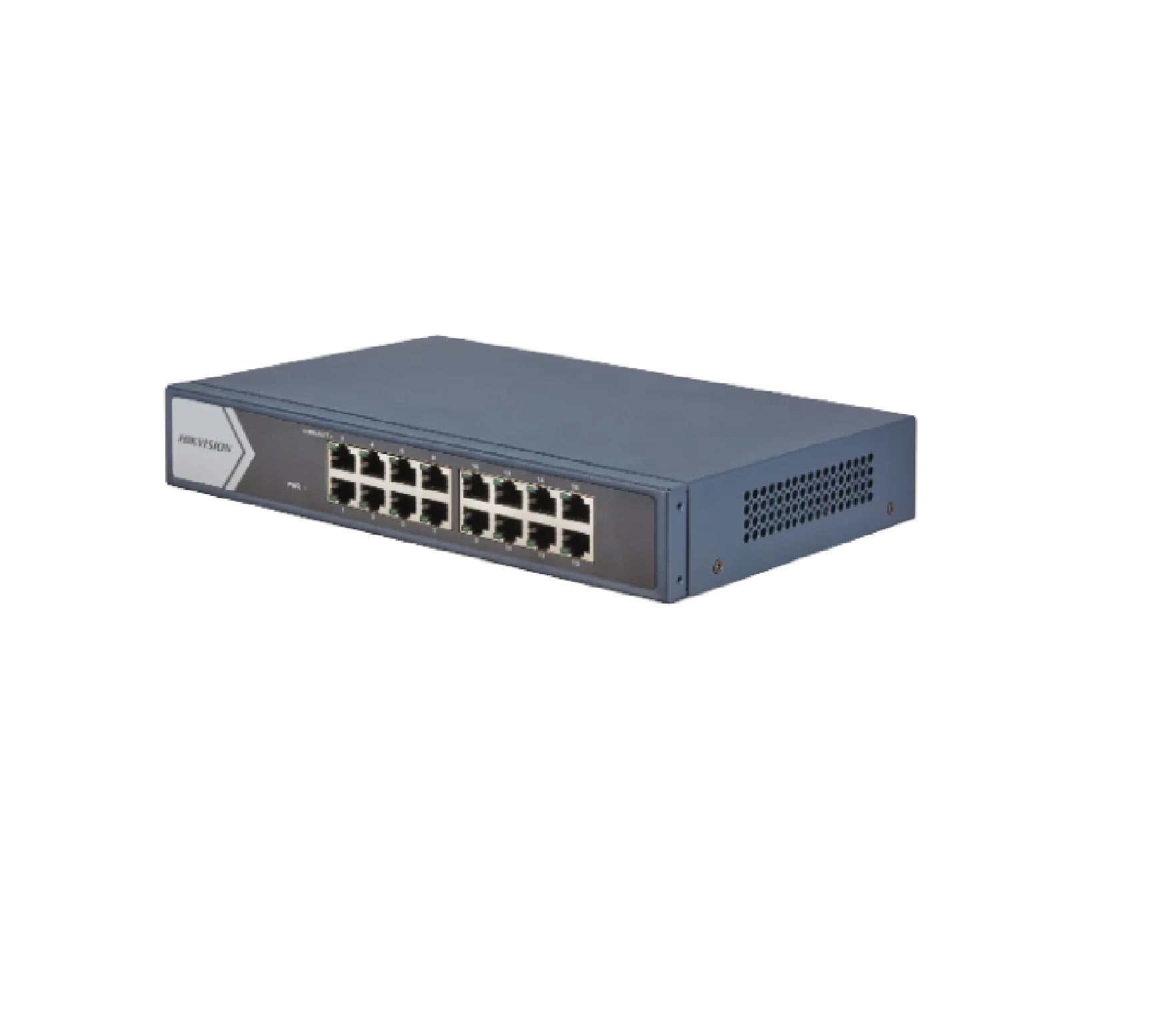

HIKVISION 16 PORT GIGABIT UNMANAGED SWITCH (DS-3E0516-E(B)

₱4,650.00

16 x 1000M Ethernet ports
Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x
1000M network access
Wire-speed forwarding and non-blocking design
Store-and-forward switching
Solid high-strength metal shell
Fan-free design with high reliability

SKU: HIKVISION 16 PORT GIGABIT UNMANAGED SWITCH (DS-3E0516-E(B) Categories: Hikvision, Hikvision Switches Tag: HIKVISION 16 PORT GIGABIT UNMANAGED SWITCH (DS-3E0516-E(B)

Description

Network Parameters
Ports16 × gigabit RJ45 ports
Port TypeRJ45 port, Full duplex, MDI/MDI-X adaptive
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding ModeStore-and-forward switching
MAC Address Table8 K
Switching Capacity32 Gbps
Packet Forwarding Rate23.808 Mpps
Internal Cache4.1 Mbits

General
Dimensions (W × H × D)257 mm × 44.5 mm × 175.8 mm (10.1” × 1.8” × 6.9”)
ShellMetal material, fan-free design
Gross Weight2.07 kg (4.56 lb)
Net Weight1.20 kg (2.60 lb)
Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
Storage Humidity5% to 95% (no condensation)
Power Supply220 VAC，50/60 Hz，Max. 0.3 A

Approval
EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 17)
SafetyUL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2027)
ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2016)
