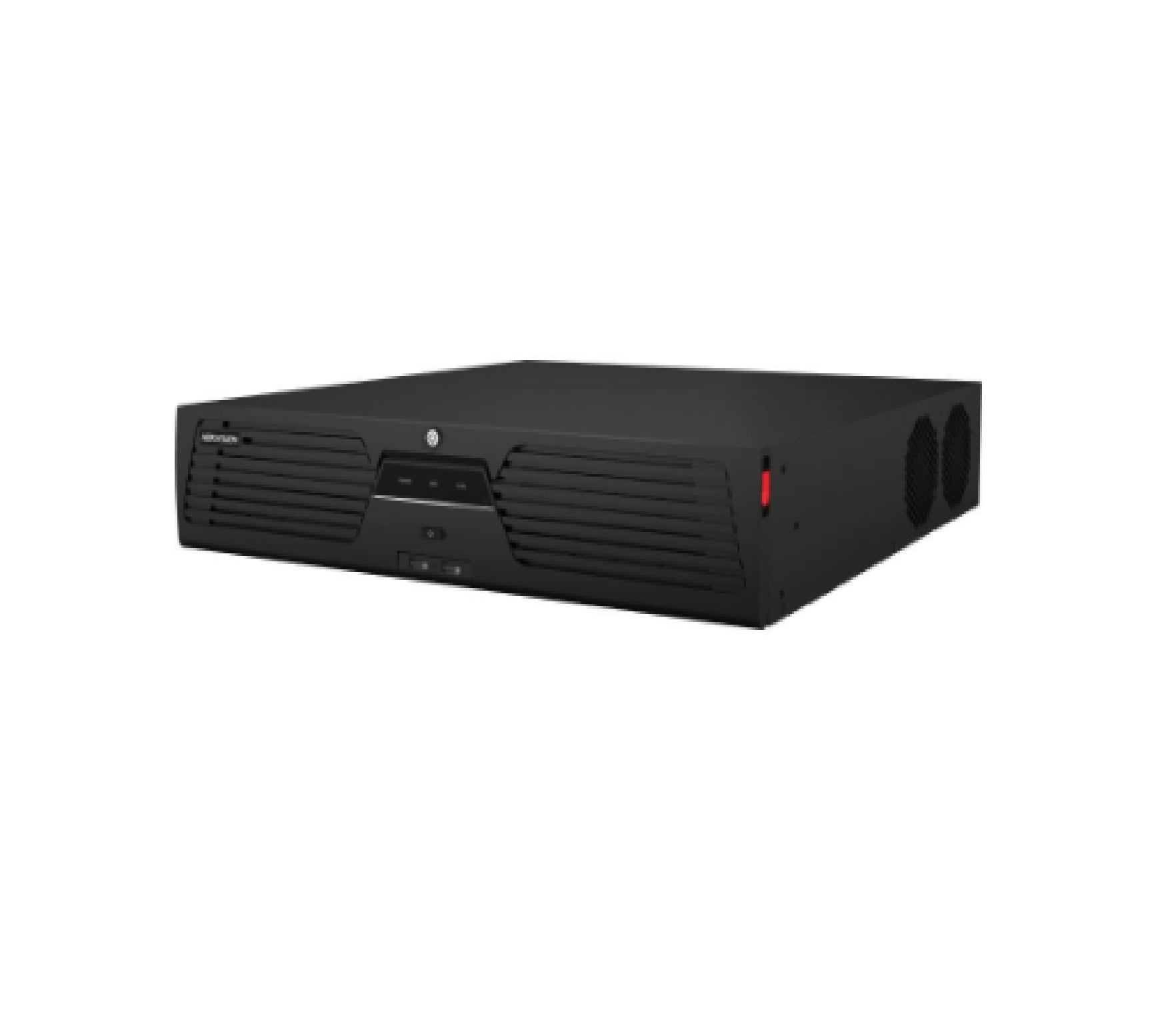

HIKVISION 16CH 2U 4K NETWORK VIDEO RECORDER (DS-9616NI-M8)

₱76,980.00

Up to 16-ch IP camera inputs
Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
Up to 256 Mbps incoming bandwidth and 256 Mbps outgoing bandwidth
2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks

SKU: HIKVISION 16CH 2U 4K NETWORK VIDEO RECORDER (DS-9616NI-M8) Categories: Hikvision, Hikvision 16CH, Hikvision Digital and Network Video Recorders Tag: HIKVISION 16CH 2U 4K NETWORK VIDEO RECORDER (DS-9616NI-M8)

Description

Video And Audio
IP Video Input16-ch
Incoming Bandwidth320 Mbps
Outgoing Bandwidth400 Mbps
HDMI 1 Output8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
HDMI 2 Output
4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output1920 × 1080/60 Hz
VGA 2 Output1920 × 1080/60 Hz
Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding
Decoding FormatH.265+/H.265/H.264+/H.264
Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-ch
Decoding Capability2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID
RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface
Serial Interface1 RS-485 (full-duplex), 1 RS-232
SATA8 SATA interfaces supporting hot-plug
ESATA1 eSATA interface
CapacityUp to 16 TB capacity for each disk
Alarm In/Out16/9
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output
