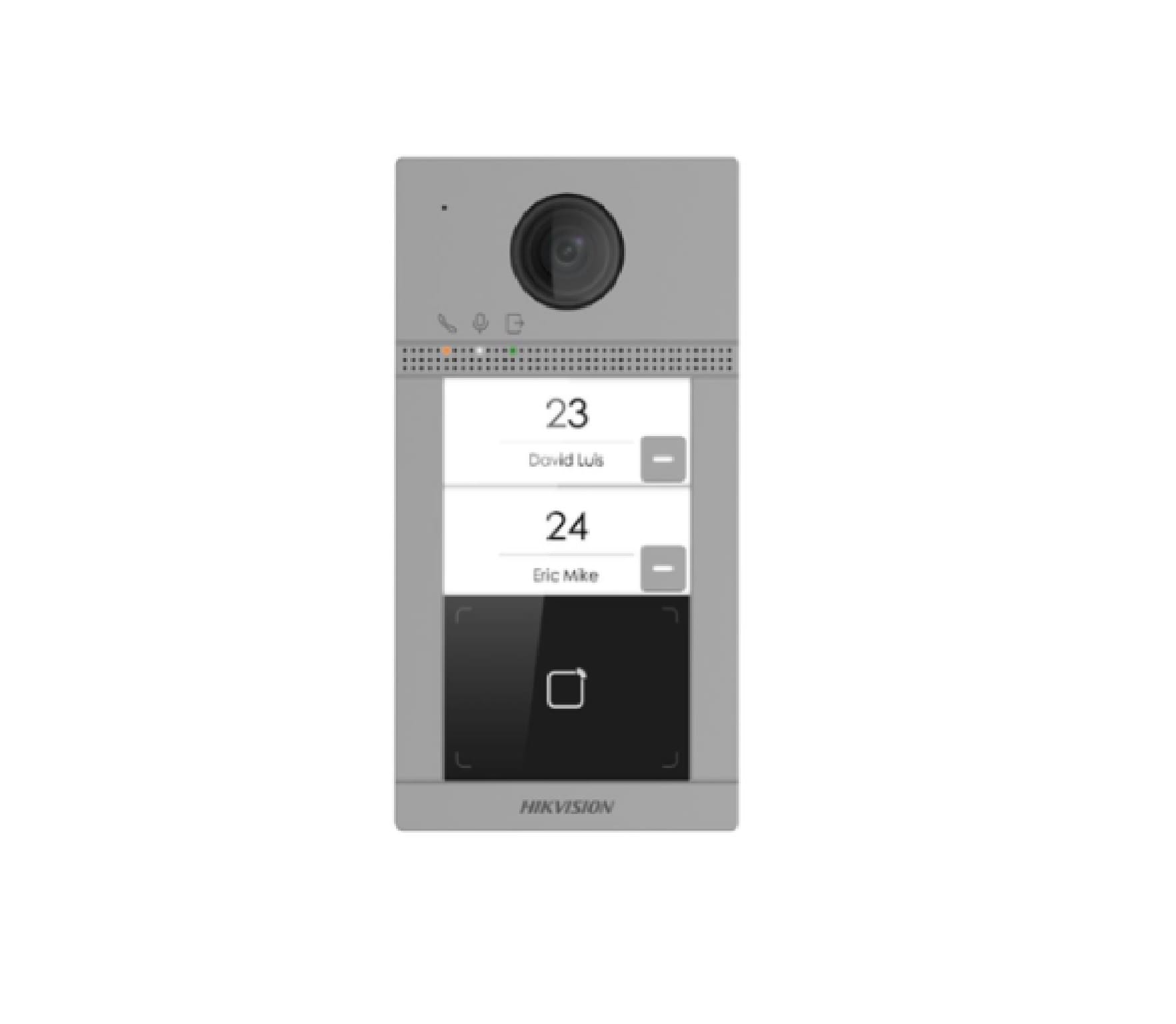

HIKVISION 2 BUTTONS METAL VILLA DOOR STATION (DS-KV8213-WME1(C)

₱10,280.00

2 MP camera with IR supplement
Two nametag buttons calling design for easier calls
Built-in card reader module
Standard PoE power supply
IK08 & IP65 higher protection level with aluminum alloy material
Convenient Hik-Connect APP mobile control

SKU: HIKVISION 2 BUTTONS METAL VILLA DOOR STATION (DS-KV8213-WME1(C) Categories: Hikvision, Video Intercom Tag: HIKVISION 2 BUTTONS METAL VILLA DOOR STATION (DS-KV8213-WME1(C)

Description

System parameters
Operation systemLinux
ROM32 MB
RAM256 MB
ProcessorEmbeded high performance processor

Display parameters
Screen size/
Operation method/
Type/
Resolution/

Video parameters
Lens1
Resolution
Main stream:1920 × 1080p and 1280 × 720p
Sub stream: 640 × 480p
FOVHorizontal: 124° Vertical: 75°
Wide dynamic range (WDR)Digital WDR/76.9 dB
Supplement lightIR light, up to 3 m
Video compression standardH.264

Audio parameters
Audio input1 built-in omnidirectional microphone
Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
Audio output1 built-in loudspeaker
Audio compression bitrate64 Kbps
Audio qualityNoise suppression and echo cancellation
Volume adjustmentAdjustable

Capacity
User capacity2000
Card capacity10000
Linked indoor station capacity2 (main indoor station)
Sub door station capacity16

Network parameters
Network protocolTCP/IP, RTSP
Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth/
3G/4G/
Received frequency2.4 to 2.4835 GHz
Transmitted frequency2.4 to 2.4835 GHz
Bandwidth20/40 MHz
Frequency power
802.11b:15 dBm +/- 1.5 dBm
802.11g:15 dBm +/- 1.5 dBm
802.11n(ht20):14 dBm +/- 1.5 dBm
802.11n(ht40):12 dBm +/- 1.5 dBm

Authentication
Card reading frequency13.56 MHz

Device interfaces
Alarm input4
Network interface1 RJ-45,10/100 Mbps self-adaptive
TAMPER1
Exit button2
RS-4851
USB/
Wiegand/
TF cardReserved
Alarm output/
Lock control2 relays, Max. 30 VDC 2 A
Door contact input2

General
Button2 physical buttons
InstallationSurface mounting
Indicator3
Weight
Net weight: 0.370 kg
Gross weight: 0.637 kg
Protective levelIP65, IK08
Working temperature-40 °C to 53 °C(-40 °F to 127.4 °F)
Working humidity10% to 95% (no-condensing)
Dimension (W × H × D)174 mm × 91 mm × 29 mm (6.9″ × 3.6″ × 1.1″)
Battery/
Application environmentOutdoor
Power consumption＜ 10 W
