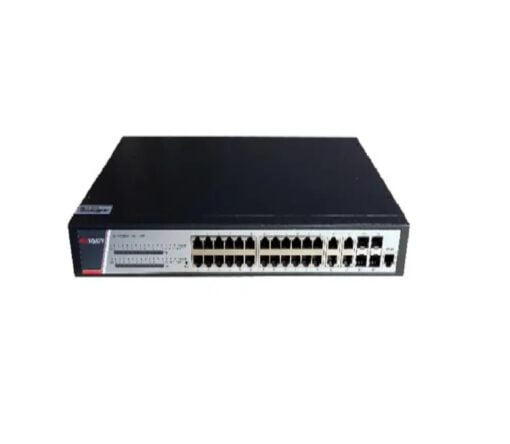

HIKVISION 24 PORT GIGABIT FULL MANAGED POE SWITCH (DS-3E2528P)

₱48,890.00

24 Gigabit Poe electrical ports and 4 Gigabit combo ports.
Support static routing, policy routing, rip, OSPF and other three-layer routing protocols.
IGMP snooping and GRMP for filtering multicast traffic.
Port‐based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning.
Support IEEE 802.1x authentication, radius and bdtacacs + authentication.
Support EAPs and ERPs Ethernet ring network protection protocol.
QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism.
Support IEEE 802.3af/at compliant PoE.
Each PoE port provides up to 30W output power.
PoE management: PoE device detection, PoE power management.
Easy network management by web browser, Console, Telnet, SSH.
SNMPv1/v2c/v3 for different levels of network management.

SKU: HIKVISION 24 PORT GIGABIT FULL MANAGED POE SWITCH (DS-3E2528P) Categories: Hikvision, Hikvision POE Switches, Hikvision Switches Tag: HIKVISION 24 PORT GIGABIT FULL MANAGED POE SWITCH (DS-3E2528P)

Description

Network Parameters
MAC Address Table336 Gbps
Ports24 × 1 Gigabit PoE port,4 × 1 Gigabit combo
Switching Capacity56 Gbps
Packet Forwarding Rate51 Mpps

PoE Power Supply
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE Power Pin1/2 (+), 3/6 (-)
PoE Power Budget370 W

Software Function
VLAN
Support IEEE 802.1Q (VLAN), 4096 VLAN IDs
Support GVRP
Support QinQ
Support VLAN based on MAC/protocol/IP subnet/policy/port
Support Private VLAN
Support 1:1 and N:1 VLAN mapping functions
QoS
Support Diff-Serv QoS
Support 802.1p/DSCP priority mapping
Support queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ
Support priority marking and remarking
Support traffic shaping
Support congestion avoidance, Tail-Drop and WRED
Support 802.1p, TOS, DSCP, and EXP priority mapping
Support port/flow-based rate limiting
Management Method
Support Console, Telnet, SSH
Support web, http, https
Support FTP, TFTP, Xmodem, SFTP
Support SNMP V1/V2c/V3
Support RMON
Support NTP
Multicast
Support IGMP v1/v2/v3 Snooping
Support IGMP V1/V2/V3
Support MLD Snooping v1/v2
Support MLD v1/v2
Security
Support AAA,TACACS+ Radius authentication
Support 802.1X authentication, MAC authentication, MAC bypass authentication
Support to prevent DOS, ARP attack function, ICMP anti attack
Support binding of IP, MAC, port and VLAN
Support MAC authentication
Support MAC address filtering
Support broadcast/multicast/unknown-unicast storm control

General
Net Weight3.1 kg (6.83 lb)
Dimensions (W × H × D)440.00 mm × 44.00 mm × 210.00 mm (17.32” × 1.73” × 8.27”)
Operating Temperature-10 °C to 50 °C (14 °F to 122 °F)
Operating Humidity10% to 90% (no condensation)
Power Supply100-240 VAC, 50/60 Hz
Power Consumption17 W

Approval
EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 24)
SafetyUL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2034)
ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2023)
