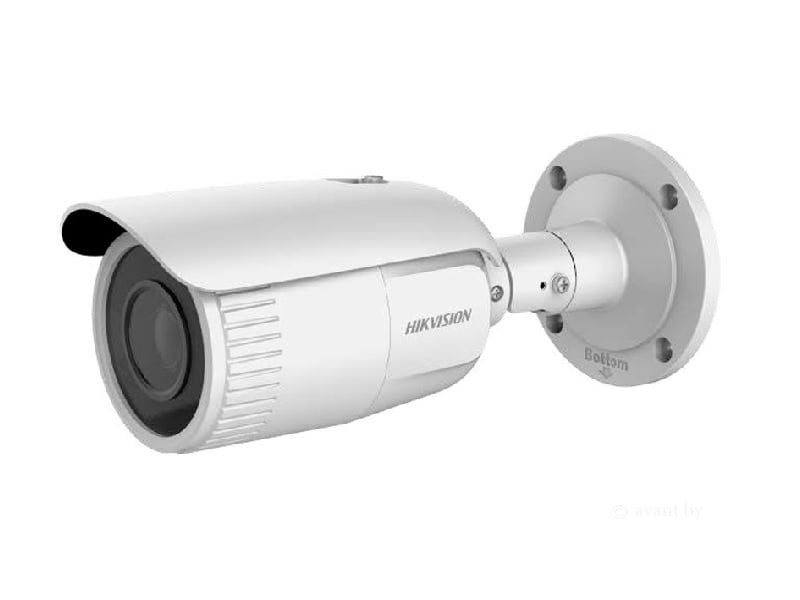

HIKVISION 2MP-2.8mm VARIFOCAL BULLET NETWORK CAMERA (DS-2CD1623G0-IZ)

₱9,030.00

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to DWDR technology
Up to 256 GB SD card slot for storage
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range

SKU: HIKVISION 2MP-2.8mm VARIFOCAL BULLET NETWORK CAMERA (DS-2CD1623G0-IZ) Categories: Hikvision, Hikvision Bullet, Hikvision HD Analog and IP Cameras Tag: HIKVISION 2MP-2.8mm VARIFOCAL BULLET NETWORK CAMERA (DS-2CD1623G0-IZ)

Description

Camera
Image Sensor1/2.7″ Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Wide Dynamic RangeDigital WDR
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°

Lens
Lens TypeVarifocal Lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm: horizontal FOV 96° to 36°, vertical FOV 51° to 20°, diagonal FOV 113° to 42°
Lens MountØ14
Iris TypeFixed
ApertureF1.6

Illuminator
IR Wavelength850 nm
IR Range
Up to 50 m

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720),
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region Of Interest (ROI)1 fixed region for main stream

Audio
Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate-S: 8 kHz/16 kHz
Environment Noise Filtering-S: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchAuto, Schedule, Day, Night
Image EnhancementBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
Audio-S: 1 input (line in), 1 output (line out), mono sound
Alarm-S: 1 input,1 output, max. 12 VDC, 30 mA
Reset KeyYes

Event
Basic EventMotion detection, video tampering alarm, exception
Linkage-S: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture, trigger alarm output
