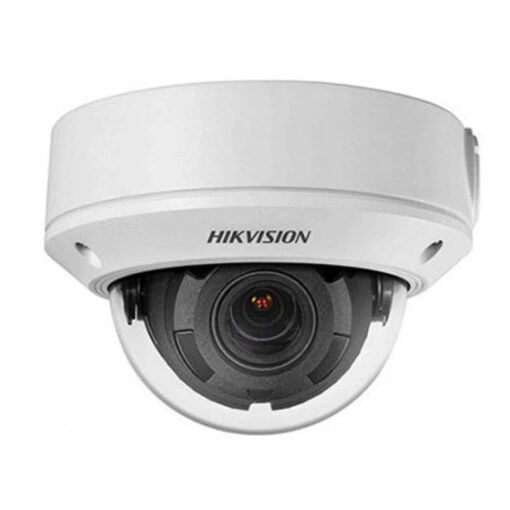

HIKVISION 2MP VARIFOCAL DOME NETWORK CAMERA (DS-2CD1723G0-IZ)

₱9,030.00

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to DWDR technology
Up to 256 GB SD card slot for storage
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67), vandal proof (IK10)
EXIR 2.0: advanced infrared technology with long IR range

SKU: HIKVISION 2MP VARIFOCAL DOME NETWORK CAMERA (DS-2CD1723G0-IZ) Categories: 2MP Resolution IP, Hikvision, Hikvision Dome, IP Camera Tag: HIKVISION 2MP VARIFOCAL DOME NETWORK CAMERA (DS-2CD1723G0-IZ)

Description

Camera
Image Sensor1/2.7″ Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Wide Dynamic RangeDigital WDR
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°

Lens
Lens TypeVarifocal Lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm: horizontal FOV 96° to 36°, vertical FOV 51° to 20°, diagonal FOV 113° to 42°
Lens MountØ14
Iris TypeFixed
ApertureF1.6

Illuminator
IR Wavelength850 nm
IR Range
Up to 30 m

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720),
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region Of Interest (ROI)1 fixed region for main stream

Audio
Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate-S: 8 kHz/16 kHz
Environment Noise Filtering-S: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchAuto, Schedule, Day, Night
Image EnhancementBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
Audio-S: 1 input (line in), 1 output (line out), mono sound
Alarm-S: 1 input,1 output, max. 12 VDC, 30 mA
Reset KeyYes

Event
Basic EventMotion detection, video tampering alarm, exception
Linkage-S: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture, trigger alarm output

General
Power
12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug
PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.32 A, max. 11.5 W
Camera DimensionØ141 mm × 99.9 mm (5.6″ × 3.9″)
Package Dimension140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1 “)
Camera WeightApprox. 820 g (1.8 lb.)
With Package WeightApprox. 1200 g (2.6 lb.)
Storage Conditions-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
OtherIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
