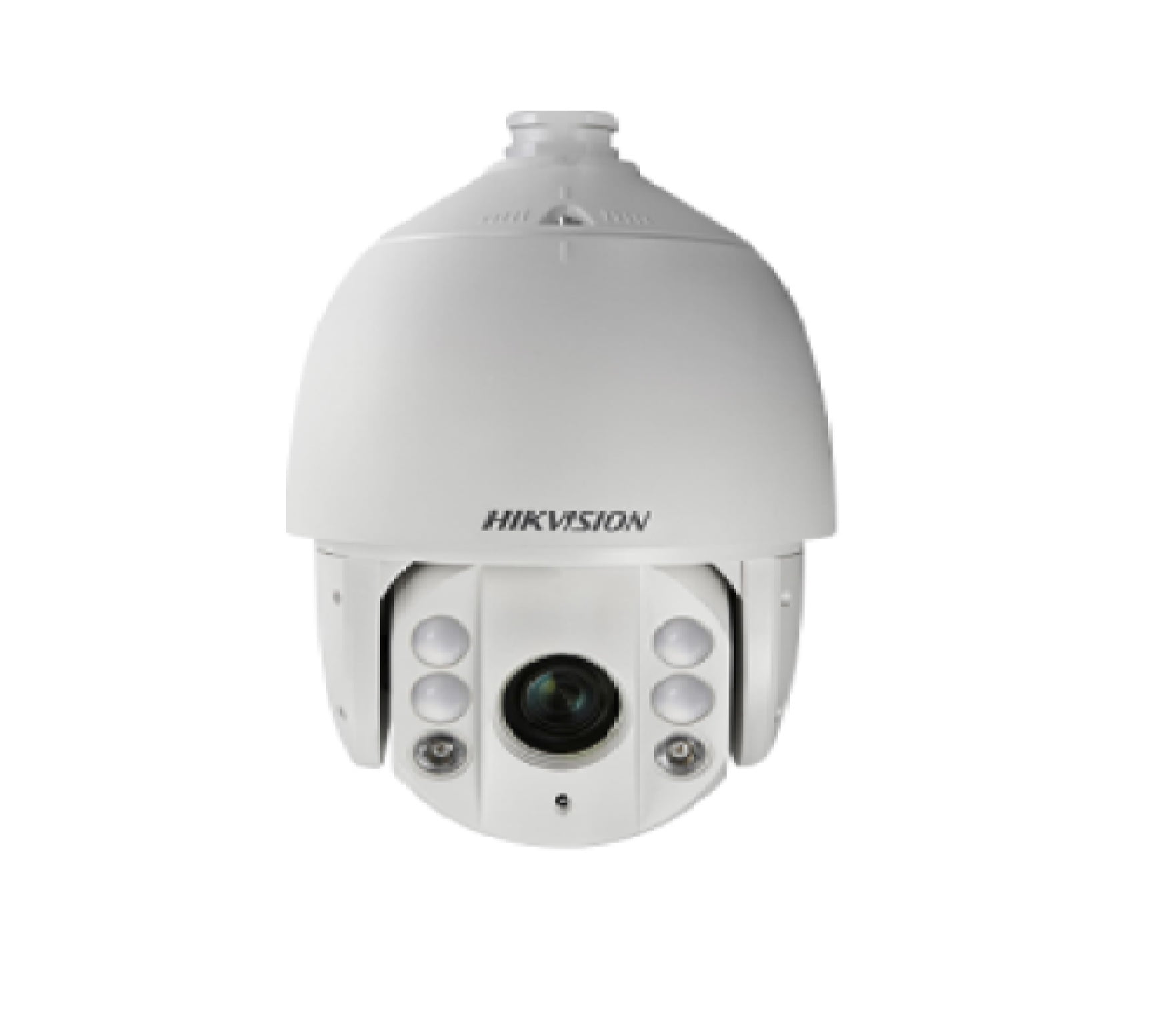

HIKVISION 3MP 30 × IR NETWORK SPEED DOME (DS-2DE7330IW-AE)

Specifications
Camera Module
Image Sensor 1/2.8″ progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
Gain Auto/Manual
Shutter Time
50Hz: 1 to 1/30,000 s
60Hz: 1 to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16 ×
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
Lens
Focal Length 4.5 to 135 mm, 30 × optical zoom
Zoom Speed Approx. 4.1 s (optical lens, wide-tele)
Field of View
Horizontal field of view: 57.2° to 2.2° (wide-tele)
Vertical field of view: 44.4° to 1.6° (wide-tele)
Diagonal field of view: 68.5° to 2.7° (wide-tele)
Working Distance 10 to 1500 mm (wide-tele)
Aperture Range F1.6 to F4.4
Illuminator
IR Distance 150 m
Smart IR Yes
PTZ
Movement Range (Pan) 360° endless
Pan Speed
Configurable, from 0.1°/s to 160°/s
Preset speed: 240°/s
Movement Range (Tilt) From -15° to 90° (auto-flip)
Tilt Speed
Configurable, from 0.1°/s to 120°/s
Preset speed: 200°/s
Proportional Zoom Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame
Scan/Panorama Scan

3D Positioning Yes
PTZ Position Display Yes
Preset Freezing Yes
Scheduled Task
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame
Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline profile/main profile/high profile
H.264+ Yes
H.265 Type Baseline profile/main profile/high profile
H.265+ Yes
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate
G.711alaw/G.711ulaw: 64 Kbps
G.722.1/G.726: 16 Kbps
MP212/PCM: 32 Kbps/64 Kbps/128 Kbps
SVC Yes
Smart Features
Basic Event Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
Smart Event
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance
Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage
Detection
Smart Record ANR (Automatic Network Replenishment), dual-VCA
Region of Interest Main stream, sub-stream, and third stream respectively support four fixed areas.
Auto-Tracking Yes
Max. Resolution 2048 × 1536
Main Stream
50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720); 50fps (1920 × 1080,
1280 × 960, 1280 × 720)
60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720); 60fps (1920 × 1080,
1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Image Enhancement BLC, HLC, defog, 3D DNR, EIS, regional exposure, regional focus
Network
Network Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS,
SMB/ CIFS), ANR

Alarm Linkage
Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger
Recording, Recording Linkage, and Alarm Input, etc.
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View Up to 20 channels
User/Host
Up to 32 users
3 user levels: administrator, operator and user
Security Measures
User authentication (ID and PW), Host authentication (MAC address); HTTPS
encryption; IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Interface
Alarm Interface 2-ch alarm input and 1-ch alarm output
Audio Interface 1-ch audio input and 1-ch audio output
Network Interface 1 RJ45 10 M/100 M Ethernet, Hi-PoE
General
Language (Web Browser Access)
32 languages.
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power
24 VAC, 2.2 A, 50/60Hz and Hi-PoE, 42.5 to 57 VDC, 1.41 A
Max.40 W, including max. 14 W for IR and max. 6 W for heater.
Working Environment Temperature: -30°C to 65°C (-22°F to 149°F), humidity: ≤ 90%
Protection Level
IP66 Standard, IK10 (excluding glass window), 6000V Lightning Protection, Surge
Protection and Voltage Transient Protection
Material ADC 12, PC, PC+10%GF
Dimension Φ 220 mm × 353.4 mm (Φ 8.66″ × 13.91″)
Weight Approx. 4.5 kg (9.92 lb.)
