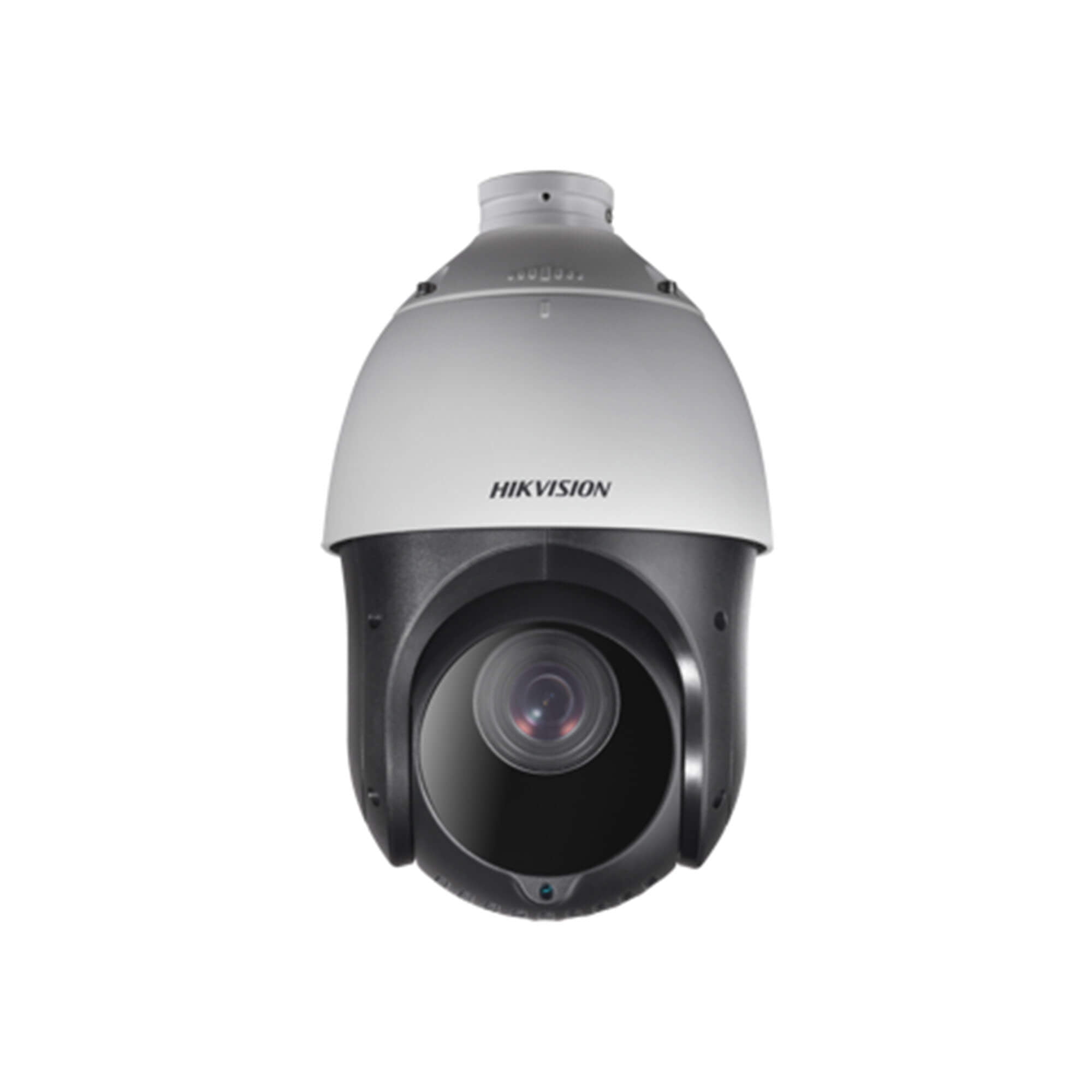

HIKVISION 4-inch 2MP 15X POWERED BY DARKFIGHTER IR ANALOG SPEED DOME (DS-2AE4215TI-D)
₱17,130.00
- Camera
- Image Sensor1/2.8″ Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 lux with IR
- Shutter Speed
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
- Day & NightIR cut filter
- Zoom15× optical, 16 × digital
- Lens
- Focal Length5 mm to 75 mm, 15 × optical
- FOVHorizontal FOV: 53.8° to 4.0° (wide to tele)
- FocusAuto, semi-auto, manual
- ApertureF1.6 to F3.5
- Zoom SpeedApprox. 2.4 s (optical, wide to tele)
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 100 m
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan Speed
Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s
- Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
- Proportional PanRotation speed can be adjusted automatically according to zoom multiples
- Presets256
- Preset FreezingYes
- Patrol Scan10 patrols, up to 32 presets for each patrol
- Pattern Scan5 patterns, record time over 10 minutes for each scan
- Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
- PTZ Status DisplayYes
- Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-Off MemoryYes
- Video
- Frame Rate
50 Hz: 25 fps @(1920 × 1080)
60 Hz: 30 fps @(1920 × 1080)
- Network
- ProtocolsUTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
- Image SettingsAGC, white balance
- Wide Dynamic Range (WDR)≥ 120 dB
- Image StabilizationEIS
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask8 programmable privacy masks
- Regional FocusYes
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
- RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- General
- Power12 VDC, max. 20 W (IR: 7 W)
- DimensionØ 164.5 × 295 mm (Ø 6.47″ × 11.61″)
- Approx. 2 kg (4.41 lb.)
- Operating Condition-30° C to 65° C (-22° F to 149° F). Humidity 90% or less
- LanguageEnglish
- Approval
- ProtectionIP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and voltage transient protection
- High quality imaging with 2 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- Up to 100 m IR range ensures safety at night
- Water and dust resistant (IP66)
