HIKVISION 4MP H.265 BULLET WIFI KIT (NK44W0H(D)

₱24,490.00

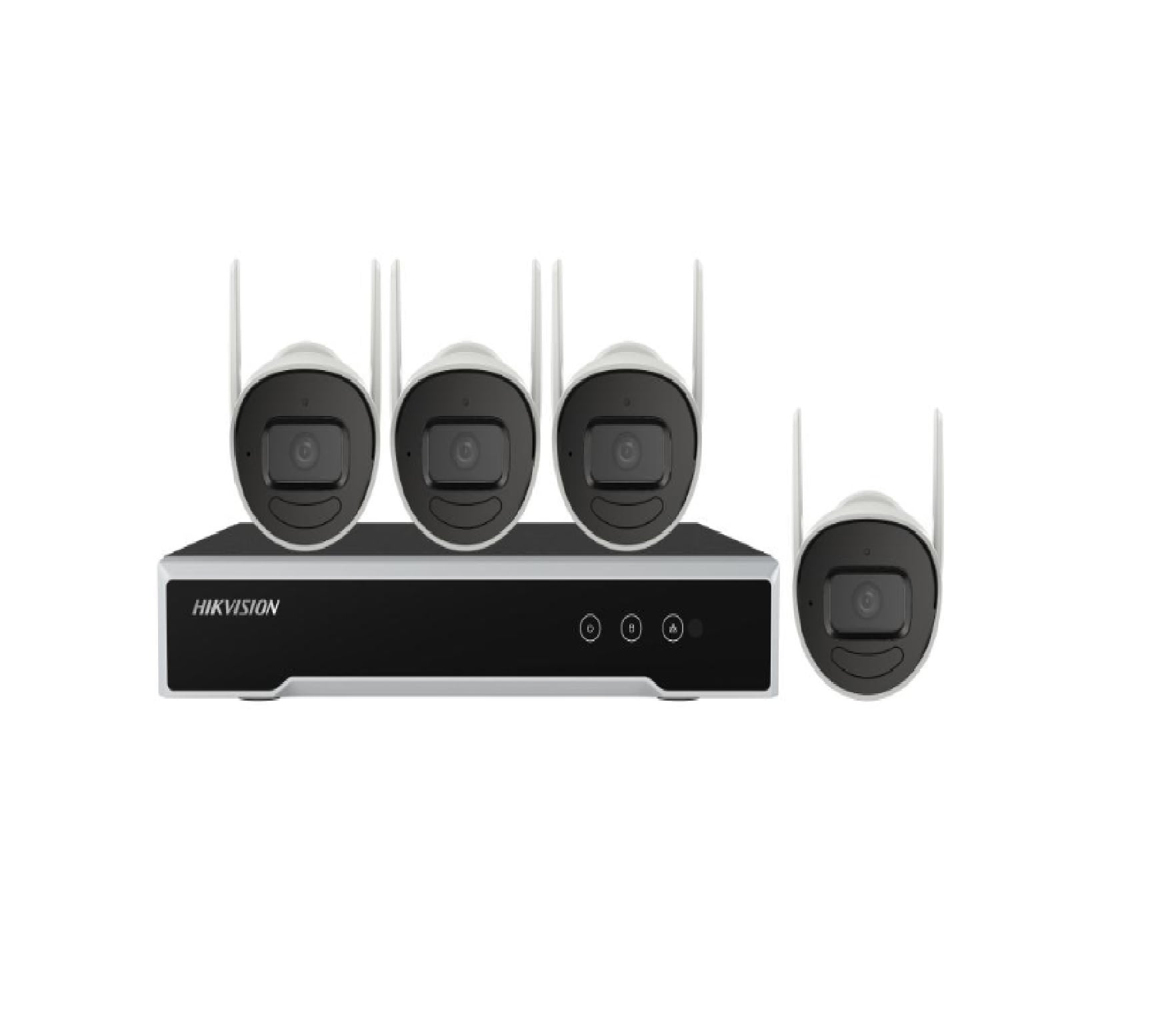

One pack provides everything required for small monitoring scenarios:One 4-ch Wi-Fi NVR with decoding up to 4-ch @ 4MP
four 4 MP bullet Wi-Fi cameras with efficient H.265 compression technology
One network cable and one HDMI cable
Auto Wi-Fi connection and easy installation
Hik-Connect cloud service and app for remote management and viewing of devices

SKU: HIKVISION 4MP H.265 BULLET WIFI KIT (NK44W0H(D) Categories: Hikvision, Hikvision Digital and Network Video Recorders, Hikvision HD Analog and IP Cameras Tag: HIKVISION 4MP H.265 BULLET WIFI KIT (NK44W0H(D)

Description

Camera
Camera Case TypeBullet
Image Sensor1/3″ Progressive Scan CMOS
Min. IlluminationColor: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Day &NightIR cut filter
WDRDWDR
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Protection LevelIP66
MaterialFront cover: plastic, camera body: metal
Wi-Fi SupportYes

Camera/Lens
Focal Length2.8 mm
ApertureF1.6
FocusFixed
FOV2.8 mm, horizontal FOV: 97°, vertical FOV: 52°, diagonal FOV: 114°
Lens MountM12

Camera/IR
IR RangeUp to 30 m

Camera/Compression Standard
Video CompressionMain stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264
H.264 TypeBaseline Profile/Main Profile/High Profile
H.264+Main stream supports
H.265 TypeMain Profile
H.265+Main stream supports
Video Bit Rate32 Kbps to 8 Mbps
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate64 Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16Kbps(G.722.1)/16 Kbps(G.726)/32-160 Kbps(MP2L2)/16-64Kbps(AAC)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Camera/Image
Max. Resolution2560 × 1440
Main Stream
50Hz: 20 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-Stream
50Hz: 20 fps (640 × 360)
60Hz: 20 fps (640 × 360)
Image SettingMirror, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchAuto/Scheduled/Day/Night

Camera/Network
Alarm TriggerMotion detection, exception
ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
General FunctionAnti-flicker, heartbeat, password reset via e-mail
ClientiVMS-4200, Hik-Connect

Camera/Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Audio I/O1 Built-in mic
Reset ButtonYes

Camera/General
Power Supply12 VDC ± 25%, 0.5 A, Ø5.5 mm coaxial plug power
Consumption≤ 6 W
Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Working Humidity95% or less (non-condensing)
Dimension (W × D × H)175.6 × 73.0 × 89.1 mm (6.9″ × 2.9″ × 3.5″)
Weight330 g (0.7 lb.)

NVR/Video And Audio
IP Video Input4-ch
Incoming/Outgoing Bandwidth50 Mbps/40 Mbps
HDMI/VGA Output
1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA simultaneous output
Audio Output1-ch, RCA (linear, 1 KΩ)

NVR/Decoding
Video Resolution4 MP/3 MP/1080p/1.3 MP/720p
Synchronous Playback4-ch
Capability4-ch@4 MP (12 fps)/4-ch@1080p (25 fps)

NVR/Network
Network Interface1, RJ45 10/100M Ethernet interface
Network ProtocolIPv6, UPnP™, NTP, SADP, DHCP
Remote Connection16

NVR/Wi-Fi
Frequency Band2.4 GHz
Antenna Structure2 × 2MIMO
Transmission Speed144 Mbps
Transmission StandardIEEE 802.11b/g/n

NVR/Auxiliary Interface
SATA1
CapacityUp to 6 TB capacity for each disk
USB InterfaceRear panel: 2 × USB 2.0

NVR/General
Power Supply12 VDC
Consumption (Without HDD And PoE Off)≤ 12 W
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″)
Weight (Without Hard Disk)≤ 1.6 kg (3.5 lb.)

Kit
Accessories
Power cable: 4 × IPC power cables, 1 × NVR power cable
Ethernet cable: RJ45, Cat5e UTP, 1 m. Connects NVR and Switch
HDMI cable: 1 × HDMI cable, 2 m, black
CertificationFCC, CE
Weight (With Package)≤ 7 kg (15.4 lb.)
