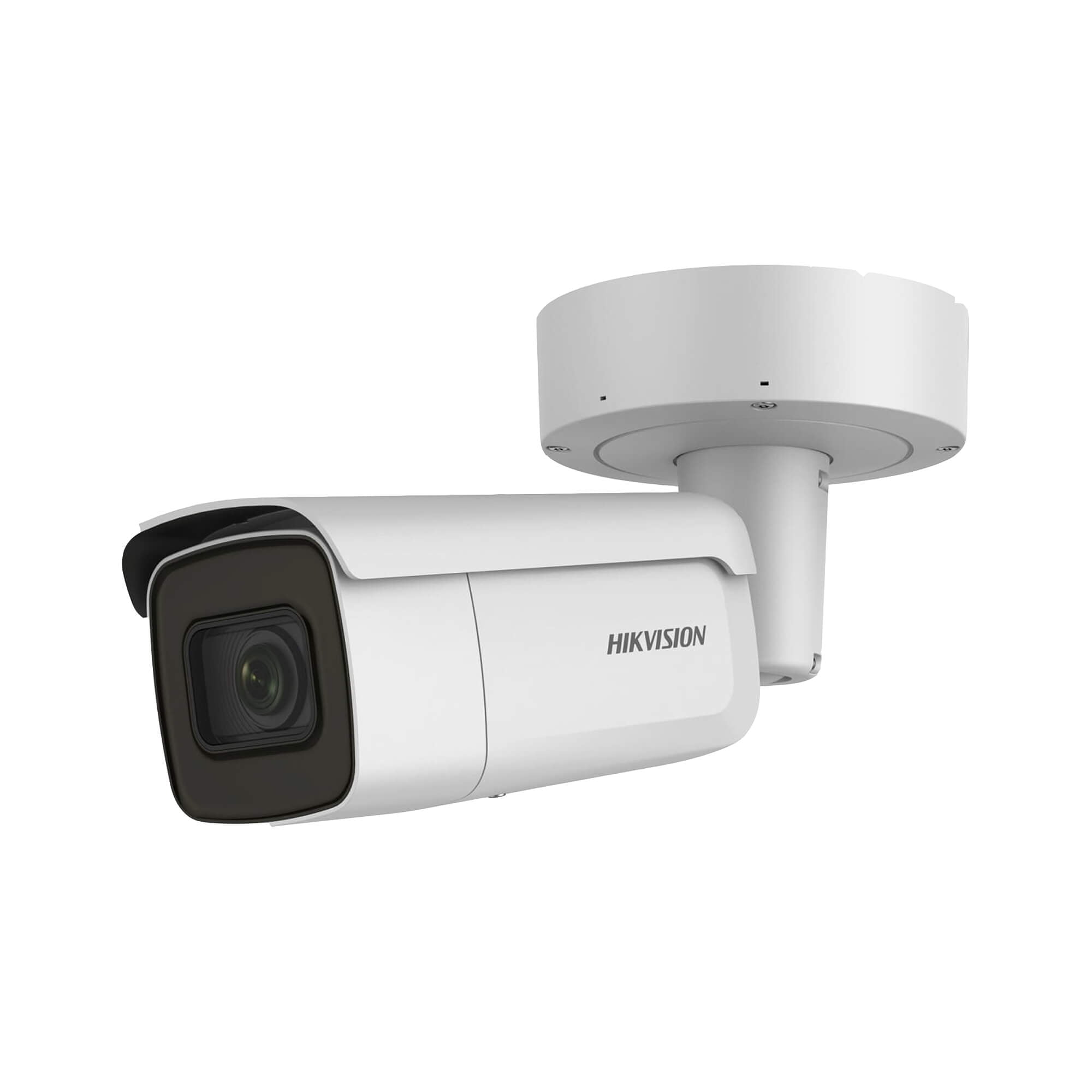

Make | Hikvision |
---|---|
Manufacturer | Hikvision |
Model code | DS-2CD2643G0-IZS |
Chip Inch Size | 1/3 inch |
Colour Type | Colour / Monochrome |
Resolution | 4MP resolution |
Digital (DSP) | Yes |
Specialist Type | Network |
Sensitivity Lux | 0 ~ 0.01 lux |
Auto Iris | Yes |
Direct Drive | Yes |
Electrical Specifications | Voltage: 12 V DC, PoE Power Consumption: 14.5 W ~ 18 W |
Motion Activated | Yes |
High Speed | Yes |
Focal Length mm | 2.8 ~ 12 |
Wide Dynamic Range | Yes |
Picture Elements HxV | 2560 × 1440 |
Network Properties | Image Frame Rate: 25 ~ 30 fps Interface: 1 RJ45 10M/100M Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
Back Light Compensation | Yes |
Auto Gain Control | Yes |
White Balance | Yes |
Electronic Shutter Range | 1/3 ~ 1/100,000s |
Y/ C (Video Output) | 1Vp-p Composite Output(75Ω/BNC) |
Compression Type | H.265, H.264, MJPEG |
Physical Specifications | Weight g: 1,740 Dimensions mm: 145 x 333 |
Environmental Specifications | Protection: IP67, IK10 Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95 |
System Requirements | Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
Additional info |
|
