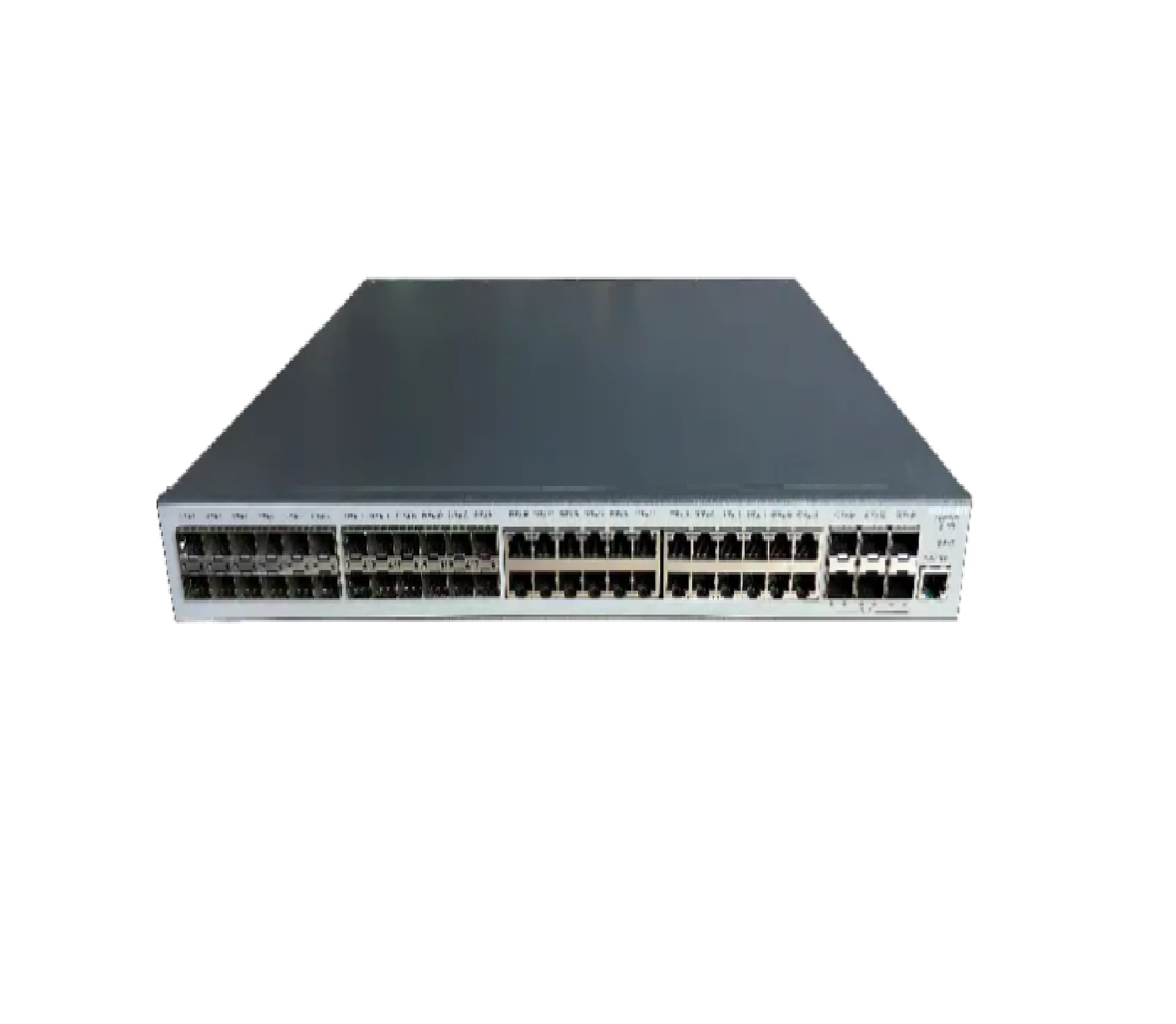

HIKVISION 54 PORT10 G L3 SWITCH (DS-3E3754TF)

₱185,270.00

24 Gigabit electrical ports, 24 Gigabit SFP optical ports and 6 10 Gigabit SFP + optical ports.
Support static routing, policy routing, rip, OSPF,BGP,MPLS and other three-layer routing protocols.
IGMP snooping and GRMP for filtering multicast traffic.
Port‐based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning.
Support IEEE 802.1x authentication, radius and bdtacacs + authentication.
Support DHCP Server、DHCP Relay、DHCP Snooping.
Support EAPs and ERPs Ethernet ring network protection protocol.
QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism.
Easy network management by web browser, Console, Telnet, SSH.
SNMPv1/v2c/v3 for different levels of network management.

SKU: HIKVISION 54 PORT10 G L3 SWITCH (DS-3E3754TF) Categories: Hikvision, Hikvision Switches Tag: HIKVISION 54 PORT10 G L3 SWITCH (DS-3E3754TF)

Description

Network Parameters
Ports24 × 1 Gigabit RJ45 port,24 × 1 Gigabit fiber optical port,6 × 10 Gigabit fiber optical port
Forwarding ModeStore-and-forward switching
MAC Address Table32 K
Switching Capacity598 Gbps
Packet Forwarding Rate252 Mpps

Software Function
Device Maintenance
Support Console, Telnet, SSH
Support web, http, https
Support FTP, TFTP, Xmodem, SFTP
Support SNMP V1/V2c/V3
Support RMON
Support NTP
Reliability
Support STP/RSTP/MSTP
Support EAPS/MEAPS
Support MRD-Ring
Support ERPS
Support VRRP
Support BFD for OSPF
Support BFD for BGP
VLAN
Support IEEE 802.1Q (VLAN), 4096 VLAN IDs
Support GVRP
Support QinQ
Support VLAN based on MAC/protocol/IP subnet/policy/port
Support Private VLAN
Support 1:1 and N:1 VLAN mapping functions
Port Mirroring
Support local and remote port mirroring
Support N:4 port mirroring
Support flow mirroring
Support MAC mirroring
Routing Feature
Support static routing, RIP, OSPF, BGP, MPLS
Support IPv4/IPv6 ECMP
Support VRRP, VRRP v3
Support IPv4/IPv6 policy-based routing
Support IPv4/IPv6 routing policy
Support IPv4/IPv6 dual stack
Support IPv6 static routing, RIPng, OSPFv3
QoS
Support Diff-Serv QoS
Support 802.1p/DSCP priority mapping
Support queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ
Support priority marking and remarking
Support traffic shaping
Support congestion avoidance, Tail-Drop and WRED
Support 802.1p, TOS, DSCP, and EXP priority mapping
Support port/flow-based rate limiting
Multicast
Support IGMP v1/v2/v3 Snooping
Support IGMP V1/V2/V3
Support MLD Snooping v1/v2
Support MLD v1/v2
ACL
Support IP-based ACL/MAC-based ACL
Support based on MAC Address, IP Address, Ethertype, Protocol Type, VLAN ID, DSCP, 802.1p Priority
Support up to 256 ACLs
Link AggregationSupport IEEE 802.3ad LACP/static link aggregation
Security
Support AAA,TACACS+ Radius authentication
Support 802.1X authentication, MAC authentication, MAC bypass authentication
Support to prevent DOS, ARP attack function, ICMP anti attack
Support binding of IP, MAC, port and VLAN
Support MAC authentication
Support MAC address filtering
Support broadcast/multicast/unknown-unicast storm control

General
ShellIron shell, fan cooling design
Net Weight5.5 kg (12.13 lb)
Dimensions (W × H × D)440.00 mm × 44.00 mm × 350.00 mm (17.32” × 1.73” × 13.78”)
Operating Temperature0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature-20 °C to 70 °C (-4 °F to 158 °F)
Operating Humidity10% to 90% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Consumption In Idle75 W
