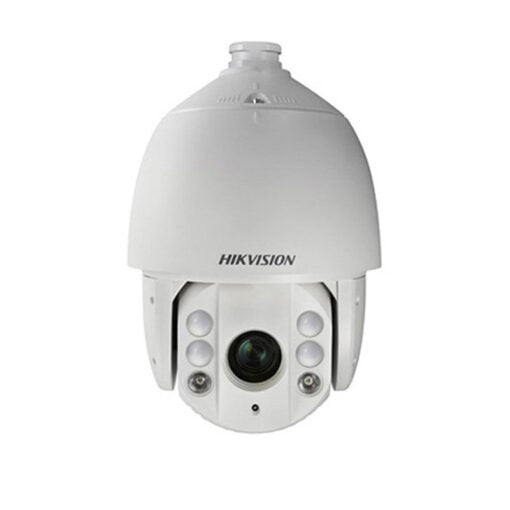

HIKVISION 7-INCH 5MP 30X POWERED BY DARKFIGHTER IR NETWORK SPEED DOME (DS-2DE7530IW-AE)

₱72,900.00

High quality imaging with 5 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to Digital WDR technology
Pan and tilt ability enables camera to monitor zones of interest
30x optical zoom allows for closer viewing of subjects in expansive areas
Up to 150m IR range ensures safety at night
Water and dust resistant (IP66).

SKU: HIKVISION 7-INCH 5MP 30X POWERED BY DARKFIGHTER IR NETWORK SPEED DOME (DS-2DE7530IW-AE) Categories: Hikvision, Hikvision HD Analog and IP Cameras, Hikvision PTZ Tag: HIKVISION 7-INCH 5MP 30X POWERED BY DARKFIGHTER IR NETWORK SPEED DOME (DS-2DE7530IW-AE)

Description

Lens
FOVSupport
Zoom SpeedApprox. 4.8 s (Optical Lens, Wide-Tele)
Working Distance10 mm to 1500 mm (Wide-Tele)
Aperture RangeF1.5 to F3.4
Focal Length5.9 mm to 177 mm, 30× Optical Zoom

Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution2592 × 1944
Main Stream50Hz: 25fps (2592 × 1944, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (2592 × 1944, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users, 3 levels: Administrator, Operator and User
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE 8+, Chrome 31+, Firefox 30+, Safari 8.0+ web browser
Security MeasuresUser Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Alarm LinkagePreset, Patrol Scan, Pattern Scan, Memory Card Video Recording, Trigger Recording, E-Map, VCA Capture, Upload to FTP, Send Email, etc.

Interface
Alarm Output1-ch alarm output
Alarm Input2-ch alarm input
Audio Input1-ch audio input
Audio Output1-ch audio output
Network Interface1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB, NAS (NPS, SMB/ CIPS), ANR

Compression Standard
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG,H.264 with Baseline/Main/High Profile
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
SVCSupport

Camera Module
3D DNRSupport
AGCAuto/Manual
Regional ExposureSupport
Regional FocusSupport
Image Sensor1/1.9″ progressive scan CMOS
Min. IlluminationColor: 0.005 Lux @(F1.5, AGC ON),B/W: 0.002 Lux @(F1.5, AGC ON),0 Lux with IR
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
Day & NightIR cut filter
Digital Zoom16×
Privacy Mask8 programmable privacy masks
Focus ModeAuto/Semi-automatic/Manual
BLCSupport
HLCSupport
Optical DefogSupport
Digital Defog51.3° to 2.7° (Wide-Tele)
EISSupport
Digital WDRSupport

Supplement Light
IR Distance150 m
Smart IRSupport
IR ControlIR brightness and angle are intelligently adjustable according to the scenes.

PTZ
Movement Range (Pan)360° endless
Pan SpeedConfigurable, from 0.1°/s to 160°/s, Preset Speed: 240°/s
Movement Range (Tilt)From -15° to 90° (Auto Flip)
Tilt SpeedConfigurable, from 0.1°/s to 120°/s, Preset Speed: 200°/s
Proportional ZoomSupport
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-Off MemoryAudio Exception Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Status DisplaySupport
Preset FreezingSupport
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

Smart Features
Basic Event DetectionMotion Detection, Video Tampering, Alarm Input, Alarm Output, Exception
Smart DetectionSupport
Smart RecordANR (Automatic Network Replenishment), Dual-VCA
ROIMain stream, sub-stream and third stream respectively support four fixed areas.

Function
Lens InitializationSupport

General
DimensionsΦ 220 mm × 353.4 mm (Φ 8.66″ × 13.91″)
WeightApprox. 4.5 kg (9.92 lb)
Protection LevelIP66, IK10 (excluding glass window), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power
24 VAC, 2.5 A, 50/60 Hz & Hi-PoE, 42.5 to 57 VDC, 1.41 A
Max. 40 W, including max. 19 W for IR and max. 10 W for heater
Working TemperatureOutdoor: -30°C to 65°C (-22°F to 149°F)
Working Humidity≤ 90%
