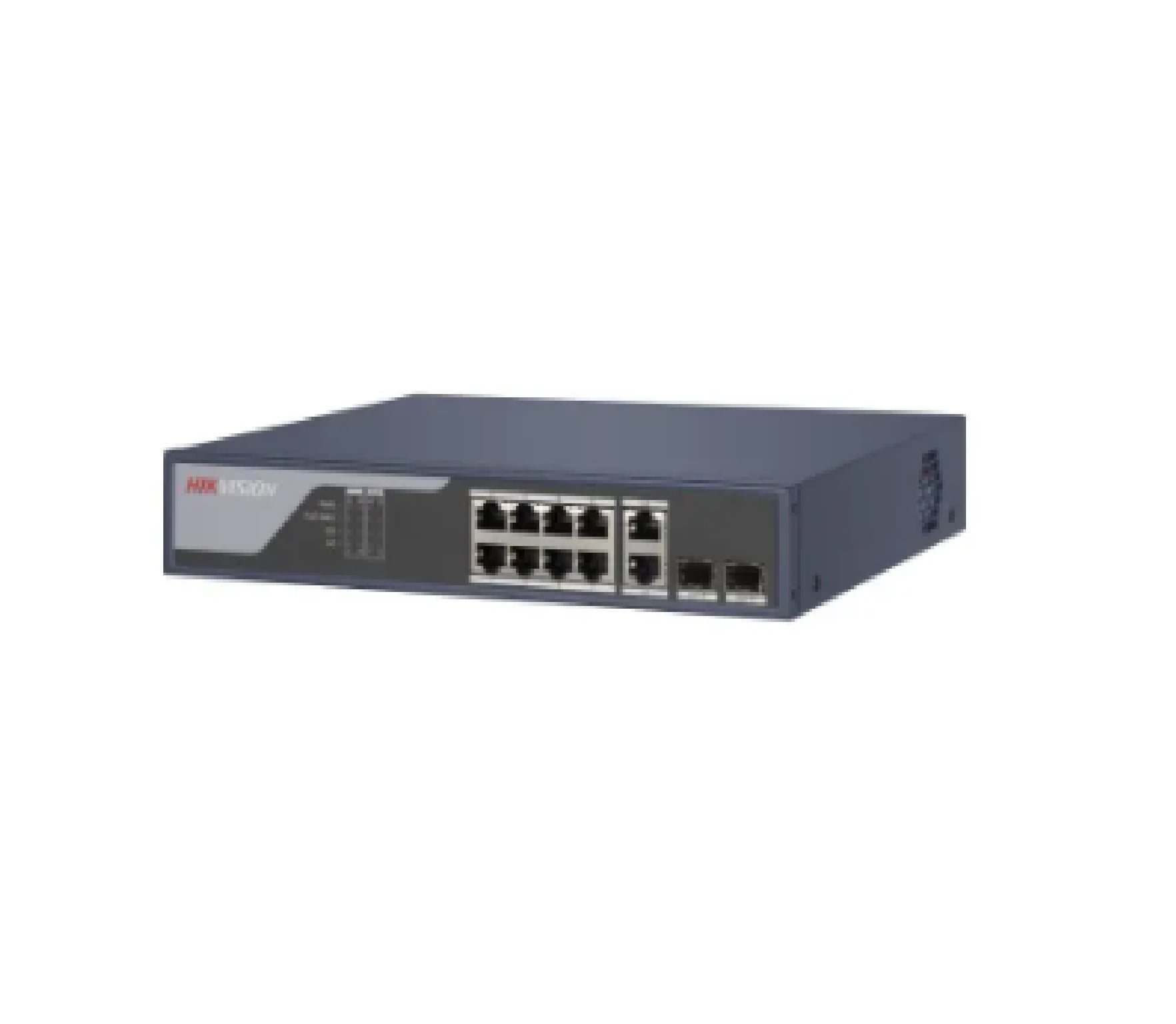

HIKVISION 8PORT FAST ETHERNET SMART POE SWITCH (DS-3E1310P-SI)

₱10,100.00

8 × 100 Mbps PoE RJ45 port, 2 × gigabit combo.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.

SKU: HIKVISION 8PORT FAST ETHERNET SMART POE SWITCH (DS-3E1310P-SI) Categories: Hikvision, Hikvision POE Switches, Hikvision Switches Tag: HIKVISION 8PORT FAST ETHERNET SMART POE SWITCH (DS-3E1310P-SI)

Description

Network Parameters
Ports8 × 10/100 Mbps PoE port,2 × Gigabit combo
MAC Address Table16 K
Switching Capacity9.2 Gbps
Packet Forwarding Rate6.84 Mpps
Internal Cache4 Mbits

PoE Power Supply
PoE StandardIEEE 802.3af,IEEE 802.3at
PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE PortPoE: Ports 1 to 8
Max. Port Power30 W
PoE Power Budget125 W

Software Function
Long Range
Ports 1 to 8: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Port Isolation
Ports 1 to 8: port isolation mode to improve network security.
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
VIP Port/
PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
QoS
QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.
Support port-based priority configuration.
Support SP, WRR priority schedule mode.
Link Aggregation/
Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 4094 VLAN.
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Supports 802.1ab LLDP for peer device discovery.
Support SNMP v1/v2c for third-party management platform access.
Support port mirroring for fault locating.
Storm Control
Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.
Supports port rate limiting based on broadcast, multicast, and unknown unicast packets.
DHCP Snooping
DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through
Off by default.
Port Rate-Limiting/
IGMP Snooping/
ACL/
IPSG/

General
ShellMetal material
Net Weight1.72 kg (3.79 lb)
Gross Weight2.20 kg (4.85 lb)
Dimensions (W × H × D)266.00 mm × 44.50 mm × 220.80 mm (10.47” × 1.75” × 8.69”)
Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply100-240 VAC, 50/60 Hz, Max. 1.5 A
Installation ModeRack (equipped with mounting ears)
Max. Power Consumption150 W
Power Consumption In Idle5 W
Surge Protection6 KV

Approval
EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);
IC (ICES-003: Issue 6);
RCM (ASNZS CISPR 32: 2015)
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition);
CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
