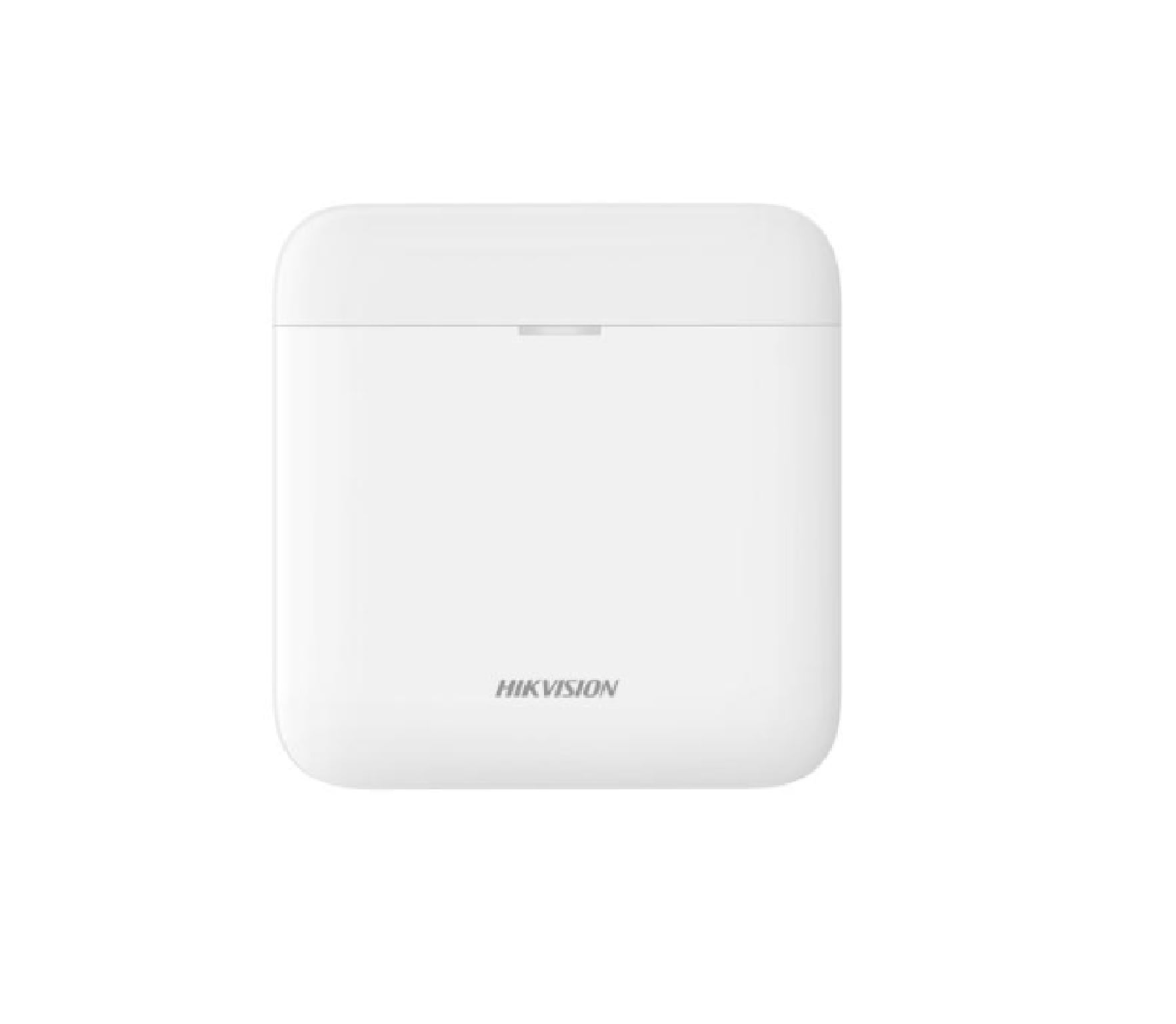

HIKVISION AX PRO (433MHz) (DS-PWA64-L-WB)

₱9,270.00

TCP/IP, Wi-Fi, and GPRS network
New generation wireless protocol: Tri-X/Cam-X
Long RF transmission distance
Two-way communication with AES-128 encryption
Connects up to 64 wireless zones/outputs (including 48 PIRCAMs), 32 wireless keyfobs, 2 repeaters, 4 sounders(2 internal+2 external), 8 tag readers and keypads.
Supports up to 32 network users, including 1 installer, 1 administrator, and 30 normal users
Voice prompt
Configuration via Web client, mobile client, and Convergence Cloud
Hik-Connect and Hik-ProConnect configuration depends on the user access level
Pushes alarm notification via messages or phone calls
Views live videos from Hik-Connect
Alarm video clips via emails and APP
Supports LED indicator to indicates system status
4520 mAh lithium backup battery
SIA-DC09 protocol, and supports both Contact ID and SIA data format
Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

SKU: HIKVISION AX PRO (433MHz) (DS-PWA64-L-WB) Categories: Hikvision, Sounder Tag: HIKVISION AX PRO (433MHz) (DS-PWA64-L-WB)

Description

- Software features
- Diagnostics via the APP or WebSupported
- Installer1
- Installer APP for programmingSupported
- Web server for maintenance (offline configuration)Supported
- Wi-Fi standardSupported
- Arm modesAway/Stay
- Firmware upgradeAPP/Web Portal
- Admin1
- Wired networkSupported
- Programming toolsHik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
- Forced arming with open zonesSupported
- Memory log stored5000
- User30
- User APP for operatingSupported
- Voice promptSupported
- Area16
- Automatic arm/disarm timersSupported
- Hardware features
- RS232 outputSupported
- SIM slotSingle
- GPRS on boardSupported
- Loudspeaker built inSupported
- Electrical characteristics
- Battery typeBuilt in on board Battery Li
- Power supplyBuilt in power supply
- Operation temperature-10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
- Battery life spanUp to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
- Wireless transmission
- RF frequency433 Mhz
- Wireless securityFrequency hoping 128 AES encryption
- Display
- LEDs statusArm/Disarm, Alarm, Tamper, Fault, Cloud, Power
- General
- Dimension(WxHxD)170.0 mm (6.7″) × 170.0 (6.7″) mm × 38.6 mm (1.5″)
- Shell materialPlastic
- ColorWhite
- Weight557.5 g (19.7 oz)
- Device management
- Tag32
- PIR camSupported
- Zones64 (up to 48 PIRCAMs)
- Keypad8 (including tag reader)
- Wireless sounder4 (2 internal+2 external)
- Wireless repeater2
- Keyfob32
- Multi Transmitter4
- Report method
- ARC protocol
  SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK)
  Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
  Supports video verification and remote control
