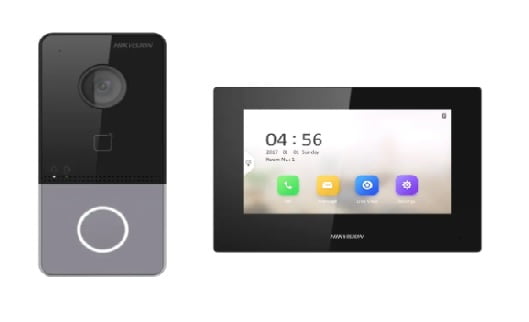

HIKVISION IP INTERCOM KIT (DS-KIS605-P)

₱11,070.00

Indoor Station：
User friendly design
7-inch colorful touch screen with resolution 1024 × 600
Standard PoE
Views live video of door stations and linked cameras
Villa Door Station：
Standard PoE
2 MP HD Camera
Noise suppression and echo cancellation
Low illumination
Access control functions
Tamper-proof
Configuration remotely via Web
2.4 GHz Wi-Fi

Add to wishlist

SKU: HIKVISION IP INTERCOM KIT (DS-KIS605-P) Categories: Hikvision, Video Intercom Tag: HIKVISION IP INTERCOM KIT (DS-KIS605-P)

Description

Door Station/System Parameters
Operation SystemEmbedded Linux operation system
Operation ModeSingle-button
Flash16 M, 32 M
RAM256 M

Door Station/Video Parameters
Camera2MP HD camera
Resolution
Main stream: 1920 × 1080p, 720p
Sub stream: 704 × 576
Night VisionLow illumination IR supplement mode:3 m
WDRTrue WDR
Field Of ViewHorizontal: 129° Vertical: 75°
Video Compression StandardH.264
Stream
Main stream: 1080p@30fps, 720p@25fps
Sub stream: D1@25fps
Motion DetectionSupport
BLCSupport
DNRSupport
Anti-Flicker Frequency50 Hz, 60 Hz

Door Station/Audio Parameters
Audio InputBuilt-in omnidirectional microphone
Audio OutputBuilt-in loudspeaker
Audio QualityNoise suppression and echo cancellation
Audio Compression StandardG.711 U
Audio Compression Rate64 Kbps
Audio IntercomTwo-way audio communication

Door Station/Network Parameters
Network ProtocolTCP/IP, RSTP
Wired Network10/100 Mbps Ethernet

Door Station/Device Interfaces
RS-4851
Alarm Input4
Debugging Port1
Grounding1
TAMPER Switch1

Door Station/General
Power Consumption＜ 10 W
Working Temperature-40° C to +53° C(-40° F to 127.4° F)
Working Humidity10% to 95%
Dimension138 mm × 65 mm × 27 mm
InstallationSurface mounting
Protection LevelIP65
Button1
Indicator2
Power Supply
IEEE802.3af, standard PoE
12 VDC

Indoor Station/System Parameters
Operation SystemEmbedded RTOS operation system
Memory64 MB
Flash16 MB

Indoor Station/Display Parameters
Display Screen7-inch TFT LCD
Display Resolution1024 × 600
Operation MethodCapactive touch

Indoor Station/Audio Parameters
Audio InputBuild-in omnidirectonal microphone
Audio OutputBuilt-in loudspeaker
Audio QualityNoise suppression and echo cancellation
Audio Compression StandardG.711U, G.711A
Audio Compression Rate64 Kbps

Indoor Station/Network Parameters
Wired Network10/100 Mbps self-adaptive
ProtocolTCP/IP, SIP, RTSP

Indoor Station/Device Interfaces
Network InterfaceRJ45, standard PoE for power supply
RS-4851(Reserved)
Alarm Input8 zones
Relay Output2(Reserved)
Power Input2 pins

Indoor Station/General
Power Supply12 VDC or standard PoE
Power Consumption≤ 6 W
Working Temperature-10 °C to 50 °C (-14 °F to 122 °F)
Working Humidity0% to 90%
Dimensions (W × H × D)200 mm × 140 mm × 15.1 mm (7.87″ × 5.51″ × 0.59″)
InstallationWall mounting
Weight
683 g (with packaging)
355 g (without packaging)
