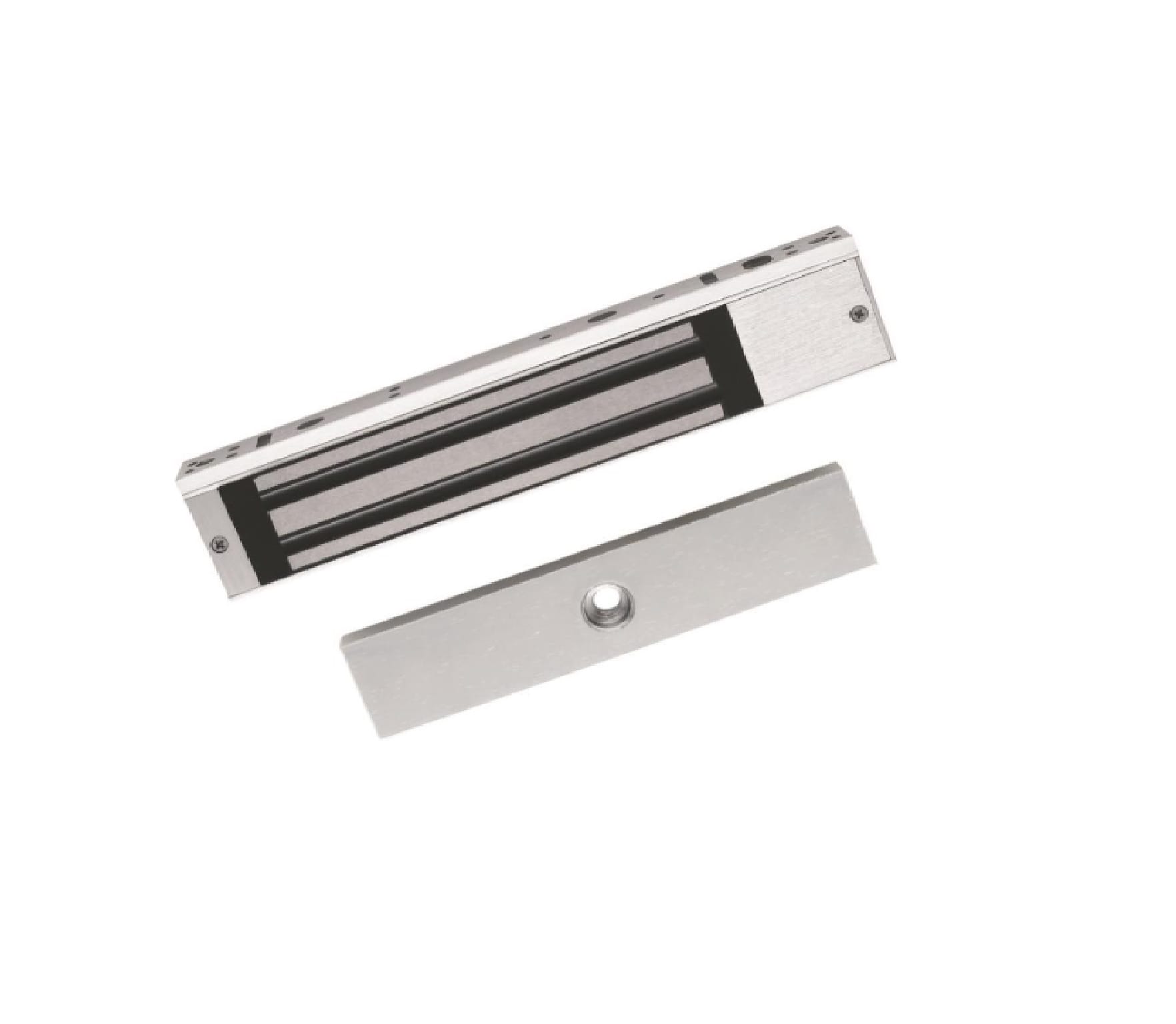

HIKVISION SINGLE DOOR MAGNETIC LOCK (DS-K4H258S)

₱1,870.00

The magnetic lock supports static linear thrust of 280kg(550Lbs)
Default voltage is 12VDC
It is equipped with internal voltage dependent resistor (MOV)
It is applied to wooden door, glass door, metal door and fireproof door

SKU: HIKVISION SINGLE DOOR MAGNETIC LOCK (DS-K4H258S) Category: Hikvision Tag: HIKVISION SINGLE DOOR MAGNETIC LOCK (DS-K4H258S)

Description

Dimension of Lock Body (LxWxH)238x45x25mm (23.88cm[9.4inch]x4.572cm[1.8inch]x2.54cm[1.0inch])
Dimension of Armature Plate (LxWxH)182x38x12.5mm (18.29cm[7.2inch]x3.81cm[1.5inch]x1.27cm[0.5inch])
Unlock MethodCurrent Interruption
Maximum Thrust280kg(550Lbs) Linear Thrust
Input Voltage12 VDC
Working Current340mAx2
LED IndicatorGreen (Work Status)
Suitable DoorWooden Door, Glass Door, Metal Door, Fireproof Door
Surface Temperature≤ Ambient Temperature +20°C (68°F)
Working Temperature-10°C~+55°C (14°F~131°F)
Working Humidity0~95% (Relative Humidity)
ShellHard Anodizing Electroplating Operated
Lock BodyEco-friendly Nickel Electroplating Operated
Armature PlateEco-friendly Zinc Electroplating Operated
Weight2.1kg
