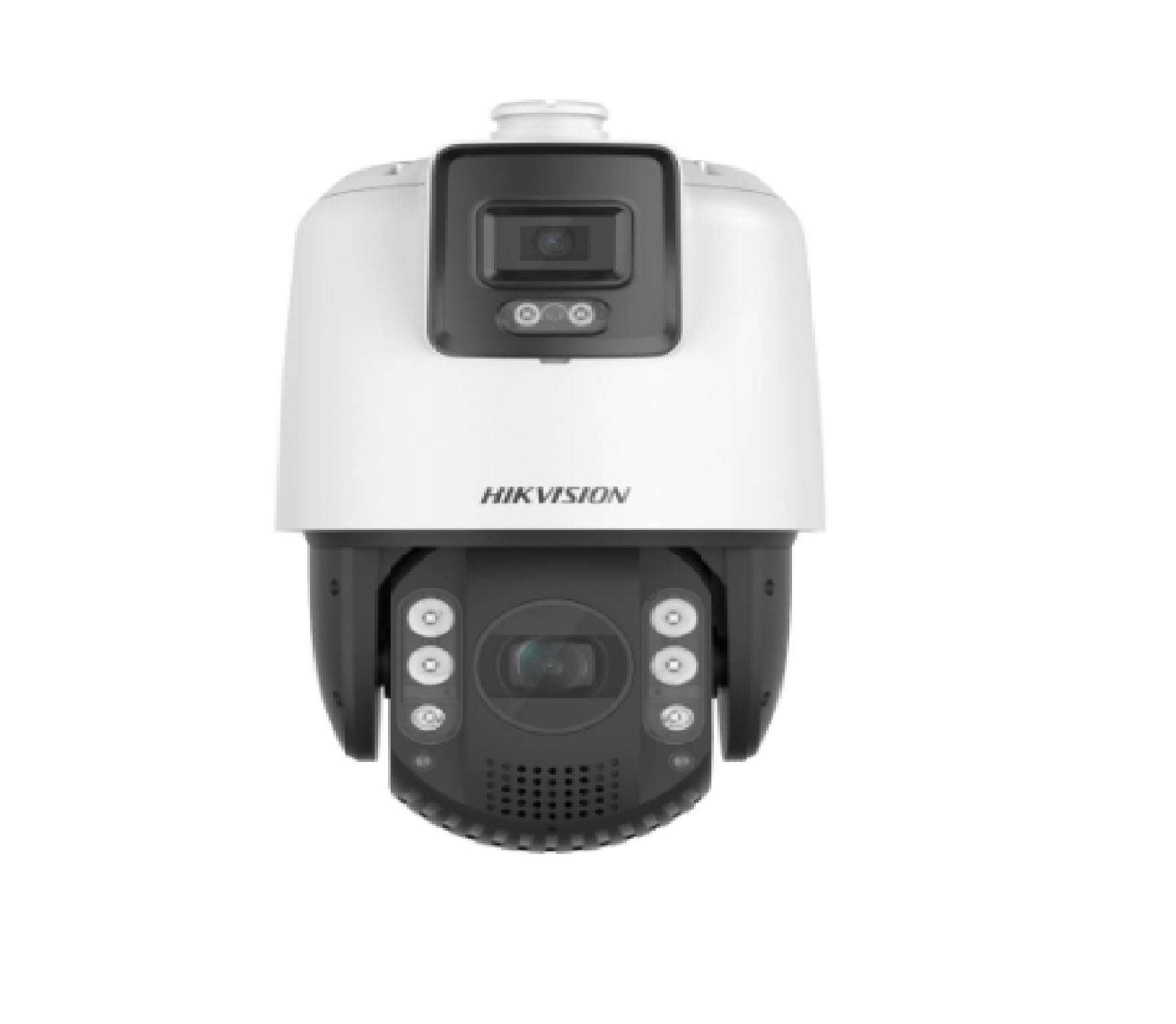

HIKVISION TANDEMVU 7-INCH 4MP 25X COLORFUL & IR NETWORK SPEED DOME (DS-2SE7C425MW-AEB (14F1)

₱52,770.00

Captures a large area and great details at the same time
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Secures an expansive area with 25× optical zoom and 16× digital zoom
Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
Expansive night view with up to 200 m IR distance
Supports 24 VAC & Hi-PoE
Active strobe light and audio alarm to warn intruders off

SKU: HIKVISION TANDEMVU 7-INCH 4MP 25X COLORFUL & IR NETWORK SPEED DOME (DS-2SE7C425MW-AEB (14F1) Categories: Hikvision, Hikvision HD Analog and IP Cameras, Hikvision PTZ Tag: HIKVISION TANDEMVU 7-INCH 4MP 25X COLORFUL & IR NETWORK SPEED DOME (DS-2SE7C425MW-AEB (14F1)

Description

Camera
Image Sensor[Bullet channel]: 1/1.8″ Progressive Scan CMOS; [PTZ channel]: 1/1.8″ progressive scan CMOS
Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
Min. Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1 s to 1/30,000 s
Day & NightICR
Zoom[PTZ channel] 25 × optical, 16 × digital
Slow Shutteryes
HLCyes
3D DNRyes

Lens
Focal Length[Bullet channel]: 4 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
FOV
[Bullet channel]: Horizontal field of view: 88.7°, Vertical field of view: 44.7°;
[PTZ channel]:
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)
Focussemi-auto||manual||auto
Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.6
Zoom Speed[PTZ channel]: approx. 3.6 s

Illuminator
Supplement Light Type[PTZ channel]: IR; [Bullet channel]: White Light
Supplement Light Range[PTZ channel]: up to 200 m; [Bullet channel]: up to 30 m
Smart Supplement LightYes

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Panyes
Presets300
Preset Freezingyes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
3D Positioningyes
PTZ Status Displayyes
Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
Power-Off Memoryyes

Video
Main Stream
[Bullet channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
[Bullet channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
[Bullet channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionH.265||H.264||MJPEG
Video Bit Rate32 kbps to 16384 kbps
H.264 Typebaseline profile||main profile||high profile
H.265 Typemain profile
Scalable Video Coding (SVC)yes
Region Of Interest (ROI)main stream, sub-stream and third stream respectively support eight fixed areas

Audio
Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM
Audio Bit Rate32 to 192 Kbps (MP2L2)
Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filteringyes

Network
ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour
Simultaneous Live View20
APIOpen-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
User/Host32
SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
Network StorageNAS (NFS, SMB/ CIFS)|| ANR||ANR
ClientiVMS-4200||Hik-Connect
Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

Image Parameters SwitchYes
Image Settingssaturation||brightness||contrast||sharpness
Day/Night Switchday, night, auto, scheduled-switch
Wide Dynamic Range (WDR)120 dB WDR
SNR＞52dB
Defogyes
Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Regional Focusyes
Regional Exposureyes

Interface
Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%,1 audio output, line level, impedance: 600 Ω
Alarm2 input(s), 1 output(s)
Resetyes

Event
Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking[PTZ channel] yes
Smart LinkageManual tracking, auto tracking, tracking takeover, track in turn

Deep Learning Function
Face Capture[Bullet channel] no,[PTZ channel] yes

General
Power24 VAC, Hi-PoE
DimensionØ 220 mm × 382.1 mm (Ø 8.66″ × 15.04″)
WeightApprox. 6 kg (13.23 lb.)
MaterialADC12
Operating Condition-30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
General Functionmirror, password protection, watermark, IP address filter
DemistDemist by heating the glass
Power Consumption And CurrentMax. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light
