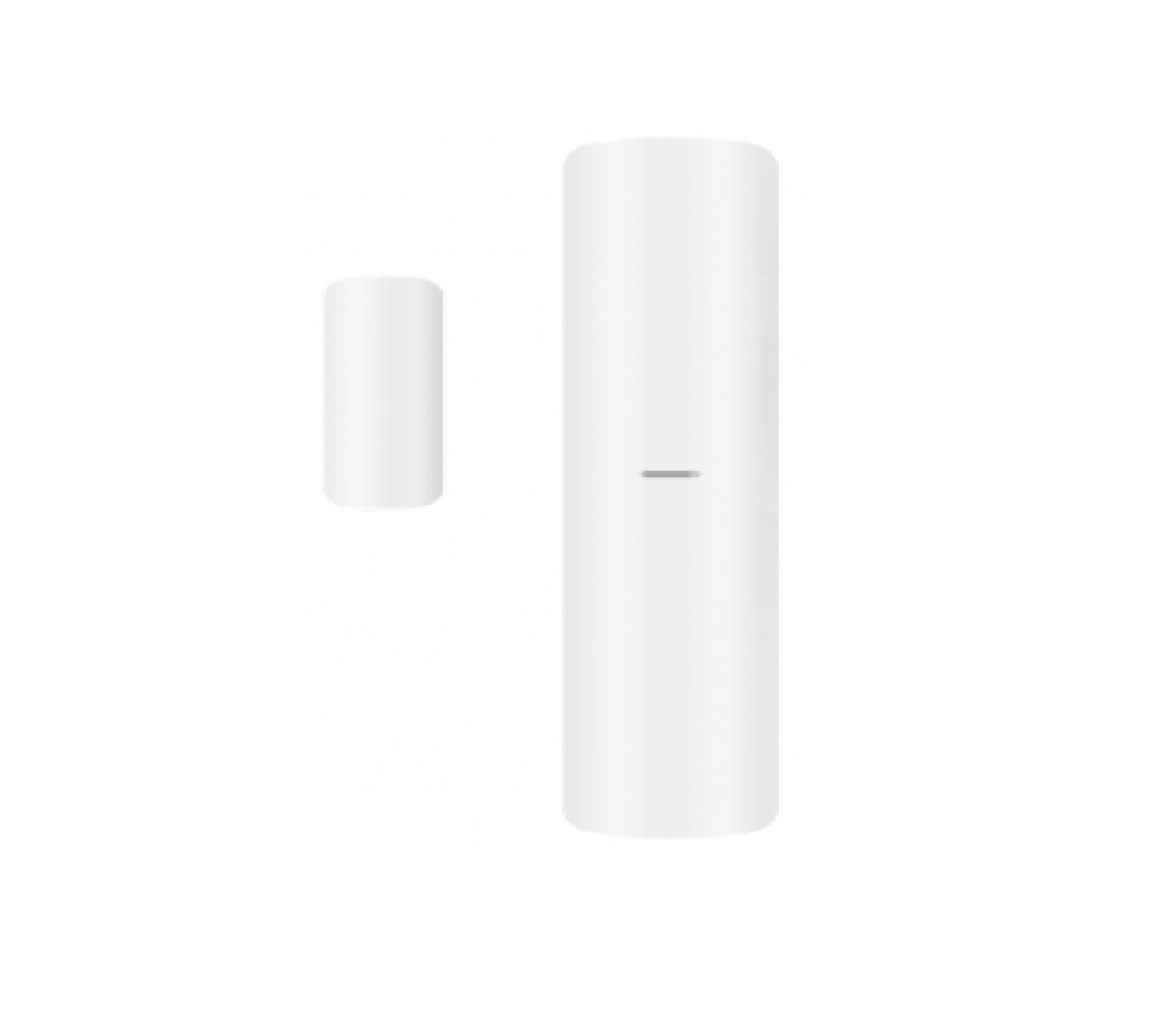

HIKVISION WIRELESS MAGNET DETECTOR (DS-PDMC-EG2-WB)

Detection Performance
Detection Method Opening Contact
Detection Gap 43mm Max
Feature
Digital Processing Support
Tamper Protection Front,Rear
Environment Temperature
Indicator
Support
Signal Strength Indicator Support
Interface
Alarm Input Normally Closed,Normally Open,Impulse Count
Power Switch Power Up Enrolling
LED Indicator Blue (Alarm)
Transmission
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 433MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.2Km
Frequency Hopping Support
Enrolling Method Power up,Remote ID,QR Code
Electrical Characteristics
Standard Battery Life 5 years in work status (being triggered 20 times per day)
Power Supply Battery Powered
Battery Type CR123A x 1
Typical Voltage 3V
General
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimension(WxHxD)
22.5mm × 103mm × 23.2mm
13mm × 34.4mm × 11.4mm
Weight 59g
Application Scenario Indoor
