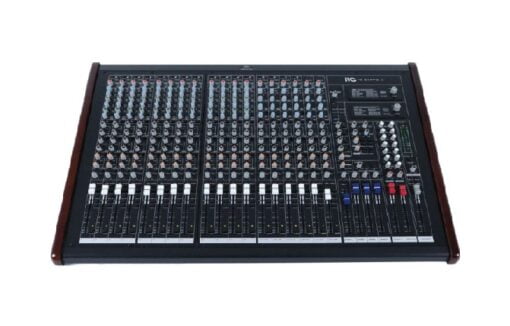

ITC 24 CHANNEL MIXER WITH 4 GROUPS/ DSP EFFECTOR (TS-24PFX-4)
₱0.00
Specification:
| Model | TS-24PFX-4 |
| Input | |
| Input impedance | Mic 2kohm balanced Line 10kohm balanced |
| Input gain | Mic continuous variable: 0dB to +50dB Line-mono continuous variable: -15dB to +35dB Line-stereo continuous variable: -20dB to +20bB |
| Maximum input level | Mic +22dBu Line – (mono) + 22dBu Line – (stereo) + 22dBu |
| Interface transmission impedance | 120ohm unbalanced |
| Interface transmission level / maximum | -10dBu/+22dBu |
| Loop impedance | 10kohm unbalanced |
| Interface loop level / maximum | -10dBu/+22dBu |
| CMR at 1 kHz Line (20Hz-20kHz) | >60dB |
| Frequency response | Mixing to mixing 20Hz-20kHz +/-3dB |
| SNR (20Hz-20kHz) | Mic EIN ref.150ohms-117dBu |
| System noise (20Hz-20kHz) | |
| Summing noise | -90dBu (24-channel routing pull low to fader) |
| Wired mixing noise | -86dBu (24-channel routing to 0dB, pan center) |
| Distortion at 1kHz | Mixing to device interface (+30dB overall gain, +20dBu output) <0.009% Mixing to device interface (+30dB overall gain, +20dBu output) wavelength 0.03% |
| Crosstalk at 1 kHz | Channel to channel >-80dB Mixing to mixing >-80dB Channel to mixing >-80dB |
| Fader attenuation | >100dB |
| Output (rated signal level mic-50dBu to 0dBu-Line 0dBu) | |
| Output channel | 14 outputs (4 group outputs, 6.5 single-plug interface output; 6 auxiliary, 6.5 single-plug interface output; 1 stereo monitor, 6.5 single-plug interface output; 1 stereo RCA output port; 1 stereo main output XLR/6.5 single plug interface; 1 channel center audio output/6.5 single plug interface.) |
| Output impedance | All line outputs are 120ohm unbalanced |
| Interface transmission impedance | 120ohm unbalanced |
| Interface transmission level / maximum | +22dBu |
| Interface loop impedance | 10kohm imbalanced |
| Interface loop level / maximum | +22dBu |
| Maximum output level at XLR main output | +28dBu |
| All outputs on 1/4″ plug | +22dBu |
| Headphone | +22dBu/600ohm |
| Main mixing section | |
| Treble slope | +/-15dB @ 12kHz |
| Alto-treble signal bell (stereo) | +/-12dB @ 3kHz |
| Alto-treble signal bell (single) | +/-12dB frequency range 100Hz-80kHz |
| Alto-bass signal bell (stereo) | +/-12dB @ 500Hz |
| Bass signal bell (stereo) | +/-15dB @ 80Hz |
| High pass filter slope | -18dB/Oct. @ 75Hz |
| Power supply | 100-240V-50/60Hz |
| Net weight | 14.1kg |
| Gross weight | 17.5kg |
| Actual size (D×W×H) | 530×770×190mm |
| Outer box size (D×W×H) | 618×840×266mm |
Description:
The large professional mixer has 18 channels of mono, 6 channels of stereo, with dual audio processor and 4 marshalling outputs. It is suitable for various performance venues, conference rooms, schools, intelligent buildings, industrial and mining enterprises as well as personal use.
Feature:
* 18 gold-plated XLR microphone inputs and balanced line inputs.
* 6 stereo TRS balanced input interfaces.
* Ultra-low noise preamplifier and +48V phantom power.
* Extremely high space provides a wider dynamic range.
* All input channels are equipped with mute, SOLO function, overload LED & low cut filter
* MIC channel with low cut filter and stage.
* Each channel has 6AUX transmission, with AUX1-2/AUX3-4/AUX5-6 and PRE/POS switchable faders.
* Microphone channel IF supports 3-band EQ adjustment.
* Stereo channel has 4-band EQ.
* With SUB1-2, SUB3-4, MAINL-R and center signal distribution switch.
* 100mm high precision fader.
* Each channel is equipped with a plug-in interface and a direct output interface, a main plug-in interface for flexible connection to external devices.
* (SUB1-SUB2)(SUB3-SUB4)|(L-R) (center) A&B matrix.
* Control room or mobile devices.
* 2-TRACK IN can be distributed to the main microphone, control room/headphone output.
* Fully assignable intercom system.
* With USB port, support recording SUB1-2 or main output, and transmitting to CH23-24 system bus for playback.
* 100 options of DSP effects.
