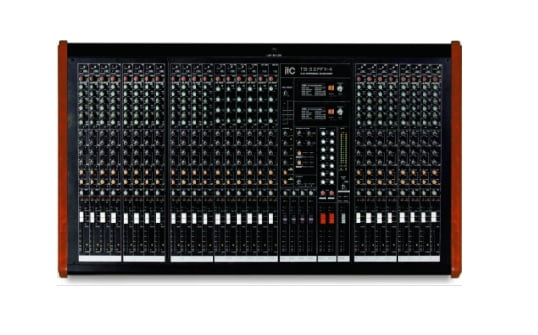

ITC 32 CHANNEL MIXER WITH 4 GROUPS (TS-32PFX-4)
₱217,100.00
Product Detail
| Model | TS-32PFX-4 |
| Input | |
| Output channel | 14 outputs (4 groups, 6.5 single-plug interface output; 6 auxiliary, 6.5 single-plug interface output; 1 stereo monitor, 6.5 single-plug interface output; 1 stereo RCA output port; 1 stereo main output XLR/6.5 single plug interface; 1 channel center audio output/6.5 single plug interface.) |
| Input impedance | Mic 2 kohm balanced Line 10 kohm balanced |
| Input gain | Mic continuous variable: 0dB to +50dB Line-mono continuous variable: -15dB to +35dB Line-stereo continuous variable: -20dB to +20bB |
| Maximum input level | Mic +22d Bu Line-(mono) +22d Bu Line-(stereo channel) +22dBu |
| Interface transmission impedance | 120ohm unbalanced |
| Interface transmission level/maximum | -10dBu/+22dBu |
| Loop impedance | 10 kohm unbalanced |
| Interface loop level/ maximum | -10dBu/+22dBu |
| CMR at 1 kHz Line（20Hz-20kHz） | >60dB |
| Frequency response | Mixing to mixing 20Hz-20kHz+/-3dB |
| SNR (20Hz-20kHz) | Mic EIN ref.150ohms-117dBu |
| System noise (20Hz-20kHz) | |
| Summing noise | -90dBu (24 channels of router to fader pull down) |
| Connection mixing noise | -86dBu (24 channels of router to 0dB, pan center) |
| Distortion at 1kHz | Mixing to device interface (+30dB overall gain, +20dBu output) <0.009% Mixing to device interface (+30dB overall gain, +20dBu output) wavelength 0.03% |
| Crosstalk at 1kHz | Channel to channel>-80dB Mixing to mixing>-80dB Channel to mixing>-80dB |
| Fader attenuation | >100dB |
| Output (rated signal level mic-50dBu to 0dBu-Line 0dBu) | |
| Output impedance | All lines output 120ohm unbalanced |
| Interface transmission impedance | 120ohm unbalanced |
| Interface transmission level/maximum | +22dBu |
| Interface loop impedance | 10 kohm unbalanced |
| Interface loop level / maximum | +22dBu |
| Maximum output level at XLR main output | +28dBu |
| All outputs on 1/4″ plug | +22dBu |
| Headphone | +22dBu/600ohm |
| Main mixing section | |
| Treble slope | +/-15dB @ 12kHz |
| Alto-treble signal bell (stereo) | +/-12dB @ 3kHz |
| Alto-treble signal bell (single) | +/-12dB frequency range 100Hz-80kHz |
| Alto-bass signal bell (stereo) | +/-12dB @ 500Hz |
| Bass signal bell (stereo) | +/-15dB @ 80Hz |
| High pass filter slope | -18dB/Oct. @ 75Hz |
| Power supply | 100-240V-50/60Hz |
| Net weight | 19.42kg |
| Gross weight | 23.5kg |
| Carton size | 618×1078×266mm |
| Product size | 530×1020×190mm |
Features
* With 26 balanced gold-plated XLR + 26 6.3mm balanced MIC input. Microphone input interface with 48V phantom power.
* With 1 pair of Stereo monitor output ports and 1 headphone output port.
* High precision carbon film fader with 33 60mm strokes.
* Use high quality audio connectors.
* With a USB port and built-in MP3 player, it can play music through external U disk.
* Built-in USB sound card is connected to the computer for music playback and sound recording.
* Built-in 24-bit DSP effects can provide 100 preset effects.
* With high and low impedance switching function, pressure limiter function and 4-channel grouping function.
* Provide a USB power supply interface to connect USB lights.
