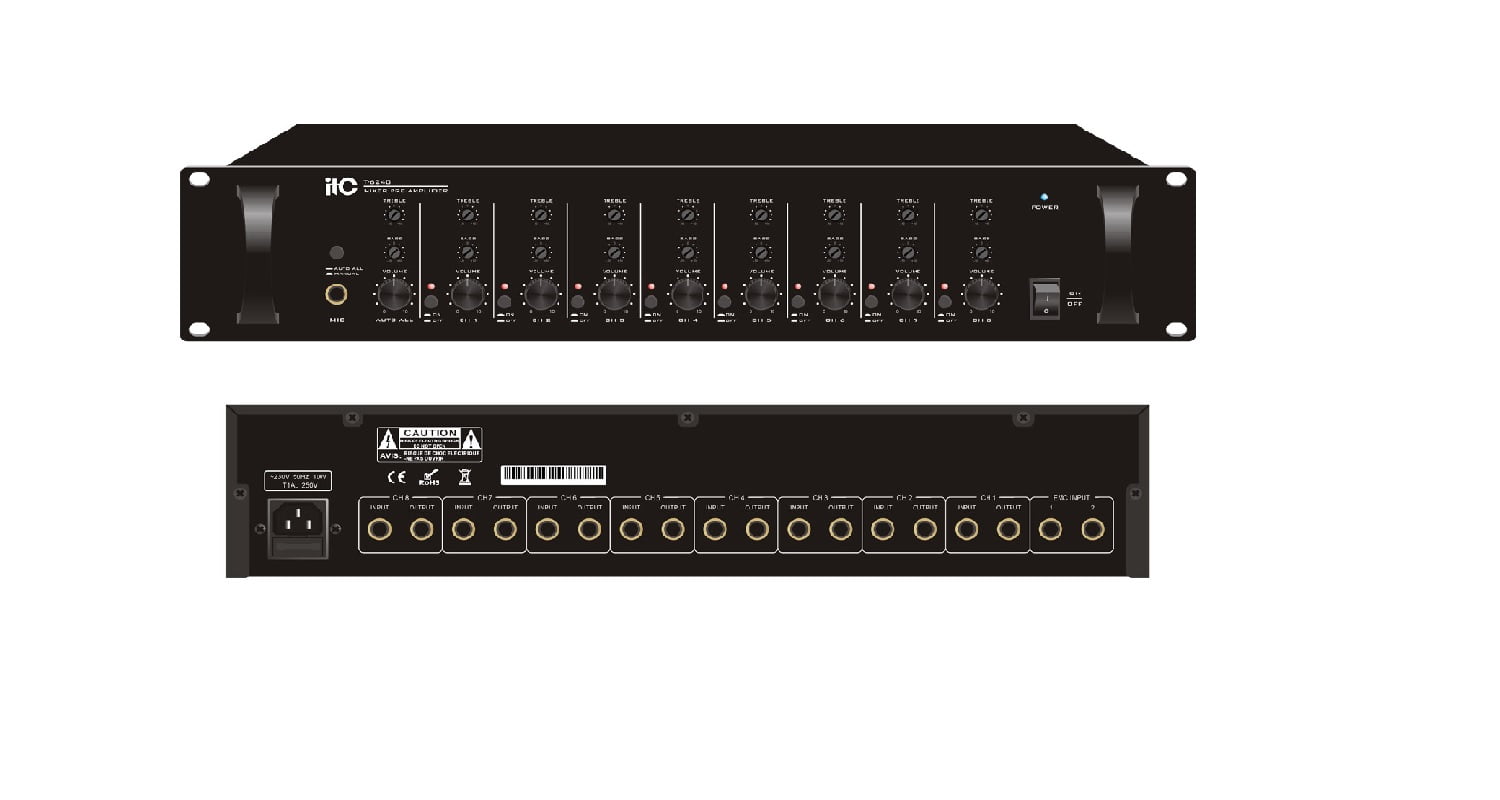

ITC 8CH PRE-AMPLIFIER EACH INPUT HAS TREBLE & BASS CONTROL (T-6240)
₱0.00
Description:
Standard case design, 2 U aluminum alloy panel; User-friendly handle design, beautiful and practical. 1 group MIC input, with automatic and manual calling switch for options. In the state of automatic mode, MIC channel can adjust the volume and tone, with top priority. In the state of manual mode, each channel can select it by themselves which has the priority override EMC. When 24V DC signal cut in, it will recover automatically to corresponding inputs; 2 groups of EMC have the second priority . When there is an emergency signal , it will switch and broadcast the emergency signal automatically; when the emergency signal stops, it will automatically recover to their corresponding inputs.
Features:
* 8 line inputs with independent volume control.
* MIC/line has independent treble and bass volume adjustment.
* 2 EMC input can switch 8 AUX signal.
* MIC input can cut off the EMC input signal.
* 8 unbalanced line/MIC outputs.
Features:
* 8 line inputs with independent volume control.
* MIC/line has independent treble and bass volume adjustment.
* 2 EMC input can switch 8 AUX signal.
* MIC input can cut off the EMC input signal.
* 8 unbalanced line/MIC outputs.
Specifications:
| Model | T-6240 |
| Input | MIC: 5mV/600Ω, unbalanced line/Mic inputs |
| CH1-CH8: 350mV/10KΩ, unbalanced line/Mic inputs | |
| EMC: 775mV/10KΩ, unbalanced line/Mic inputs | |
| Output | 1V, 600Ω |
| Frequency Response | Line/EMC frequency response: 20Hz~20KHz (±2dB) |
| Mic frequency response: 50Hz~16KHz (±2dB) | |
| S/N Ratio | MIC: 66dB, LINE: 80dB |
| THD | 0.01% |
| Crosstalk | MIC: 80dB, LINE: 85dB |
| Muting function | MIC has Muting function on EMC1-2;EMC has Muting function, |
| automatically on CH1-CH8 | |
| Controls | LINE, MIC separate volume control, treble and bass |
| adjustment, channel selectors, and power switch | |
| Indicators | Power LED, MIC channel LED |
| Power Supply | ~110V-230V 50/60Hz |
| Power Consumption | 35W |
| Weight | 4.44Kg |
| Dimensions | 484 x 335 x 88mm |
