Feature:
* With new numerical control design.
* With ring-shaped speech indicator light that can show the status of speech. Red light stands for speaking , green light stands for waiting for a speech.
* The special microphone shield design can eliminate the low frequency sound even without using the windproof cotton cover.
* The reelable condenser microphone pole and professional large heart-shaped condenser microphones core make the unit a high sensitivity and intelligibility of the speech.
* The microphone has high and adjustable sensitivity.
* The power of the units is supplied by system host at 24V safe voltage.
* The units are connected by 8-core cables in “T” shape.
* With two groups of 3.5mm stereo sound output socket, can be used for record and earphone connection.
* Built-in HIFI speaker and volume control; with squeal-suppressed function. The built-in HIFI speaker will shut off automatically when the microphone is turned on.
* With discussion / automatic video-tracking function.
Specification:

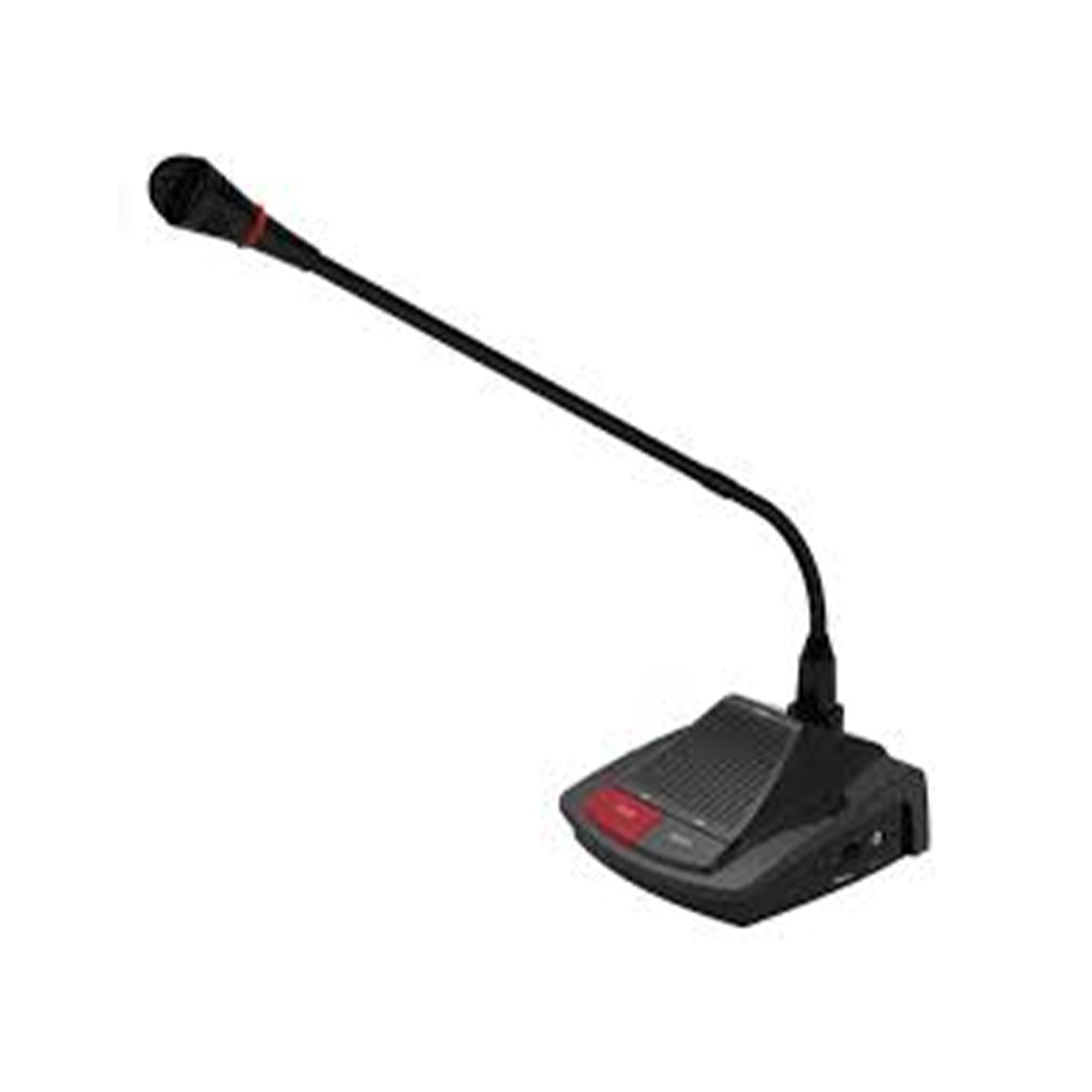

Model | TS-0602 | TS-0602A |
Microphone type | Heart shaped projection electrets microphone | Cardioid electret microphone |
Frequency response | 80Hz~16KHz | 80Hz~16KHz |
SNR | 1KΩ | 1KΩ |
Sensitivity | -34±2dB(0dB=1V/Pa,at 1kHz) | -34±2dB(0dB=1V/Pa,at 1kHz) |
Maximum SPL | 100dB(THD>3%) | 100dB(THD>3%) |
SNR | >80dB | >80dB |
Crosstalk | >70dB | >70dB |
Dynamic range | >80dB | >80dB |
THD | <0.1% | <0.1% |
MAX power consumption | 2W | 2W |
Headphone load | 8-32Ω | 8-32Ω |
Headphone volume | Max 40mW | Max 40mW |
Headphone jack | 3.5mm mono jack | 3.5mm mono jack |
Standard | IEC60914 | IEC60914 |
Connector | Comes with 1.8m aviation 8-core | Comes with 1.8m aviation 8-core |
Hand-in-hand extension | YES | YES |
Power supply | Controller power supply DC24V | Host power supply DC24V |
Colour | Black | Black |
Weight | 0.86kg | 0.86kg |
Microphone rod height | 409mm | 409mm |
Dimension (LxWxH) | 144×128×62mm | 144×128×62mm |
Installation method | Desktop | Desktop |
