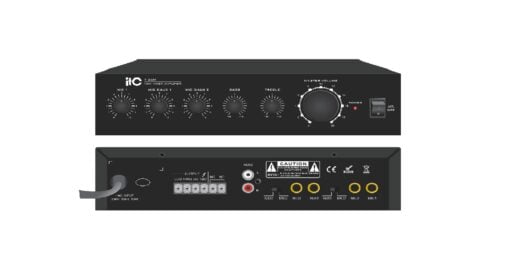

ITC MIXER AMPLIFIER-PHONE JACK MIC INPUT (T-60M)

Name: ITC MIXER AMPLIFIER-PHONE JACK MIC INPUT (T-60M)
SKU: ITC MIXER AMPLIFIER-PHONE JACK MIC INPUT (T-60M)
Availability: InStock

₱0.00

Features:

* 3 MIC inputs, 2 AUX inputs.

* 3 MIC volume control, 2 AUX volume control.

* With priority, MIC1 input is prior to other audio inputs.

* Separate treble and bass adjustment knob.

* One MIC2 / AUX1 selector switch, one MIC3 / AUX2 selector switch.

* Two types of power output: 4-ohm, 8 ohm and 70V, 100V output.

* Single channel rated power 35W / 60W output.

Speaker Outputs	70V, 100V & 4~8Ω
Input Sensitivity & Impedance	MIC 1, 2, 3: 5mV/600Ω
	MIC2: 775mV/10KΩ
	AUX2: 350mV/10KΩ
Output Sensitivity & Impedance	MIX OUT: 1V/470Ω
Tone	Bass: ±10dB at 100Hz
	Treble: ±10dB at 10KHz
Frequency Response	50Hz~16KHz (+1dB, -3dB)
S/N Ratio	MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB
THD	Less than 0.5% at 1KHz, 1/3 rated power
Crosstalk	≤50dB
Cooling	Fan automatically start up when temp reaches 55℃
Protection	High temp, overload & short-circuit
Power Supply	~110V-230V 50/60Hz
