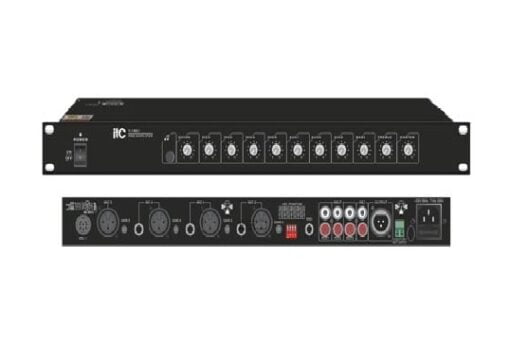

ITC PRE-AMPLIFIER (T-1S01)
₱0.00
Description:
The T-1S01 pre-amplifier with multiple balanced and unbalanced microphone input options and single channel output.
Features:
* Standard cabinet design (1U).
* 5-channel MIC input , 3-channel Aux input and 1-channel EMC input.
* Independent volume control, MASTER volume control.
* MIC balance input interface with phantom power.
* Individual Gain control for MIC.
* EMC has priority over all inputs except MIC 2.
* Bass and Treble Tone Control.
* It can be used with T-319.
Specifications:
| Model | T-1S01 |
| Input | MIC 1, 2, 3, 4, 5: 5mV/600Ω Balanced |
| AUX 1, 2, 3: 10KΩ/200mV, Unbalanced | |
| Output | 600Ω/1V/0dBV |
| Frequency Response | 20Hz~20KHz (±1dB) |
| S/N Ratio | MIC input: 80dB |
| AUX input: 85dB | |
| Tone | Bass: ±10dB at 100Hz |
| Treble: ±10dB at 10KHz | |
| Power Supply | ~110V-230V 50/60Hz |
| Dimensions | 484 x 298 x 44mm |
| Weight | 4.22Kg |
Description:
The T-1S01 pre-amplifier with multiple balanced and unbalanced microphone input options and single channel output.
Features:
* Standard cabinet design (1U).
* 5-channel MIC input , 3-channel Aux input and 1-channel EMC input.
* Independent volume control, MASTER volume control.
* MIC balance input interface with phantom power.
* Individual Gain control for MIC.
* EMC has priority over all inputs except MIC 2.
* Bass and Treble Tone Control.
* It can be used with T-319.
Specifications:
| Model | T-1S01 |
| Input | MIC 1, 2, 3, 4, 5: 5mV/600Ω Balanced |
| AUX 1, 2, 3: 10KΩ/200mV, Unbalanced | |
| Output | 600Ω/1V/0dBV |
| Frequency Response | 20Hz~20KHz (±1dB) |
| S/N Ratio | MIC input: 80dB |
| AUX input: 85dB | |
| Tone | Bass: ±10dB at 100Hz |
| Treble: ±10dB at 10KHz | |
| Power Supply | ~110V-230V 50/60Hz |
| Dimensions | 484 x 298 x 44mm |
| Weight | 4.22Kg |
