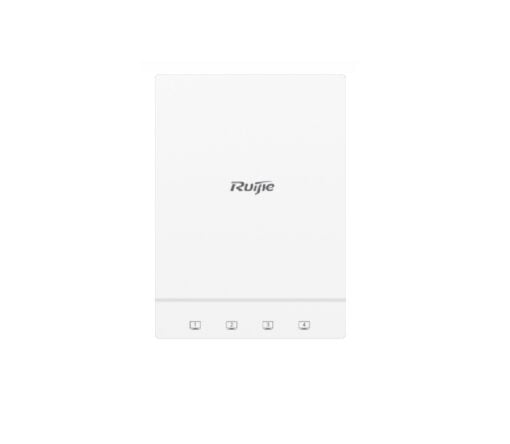

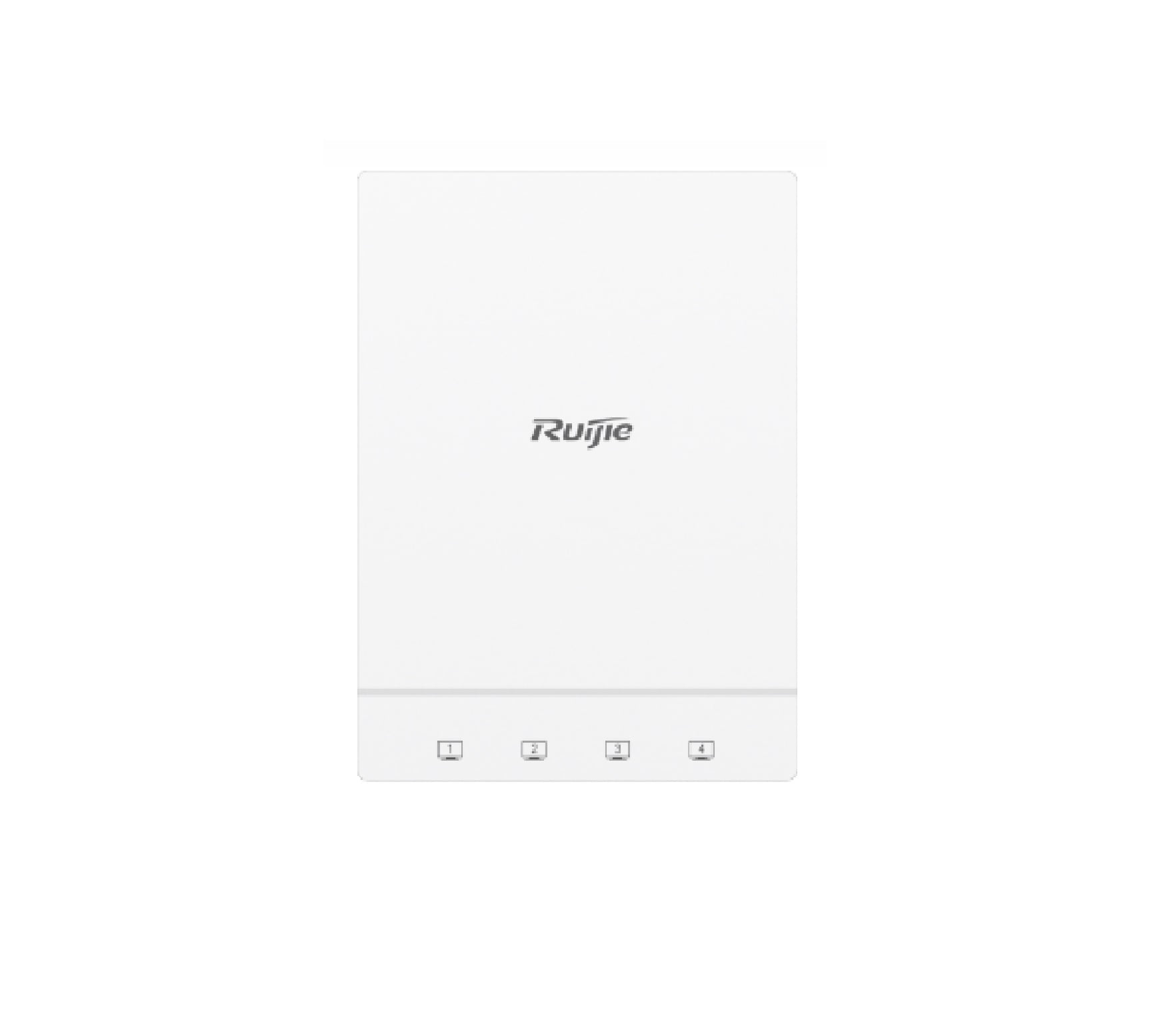

RUIJIE WI-FI 6 DUAL RADIO 1.775 GBPS INDOOR WALL PLATE WIRELESS AP (RG-AP180-MNT)
₱2,100.00
Wireless Protocols
802.11a/b/g/n/ac/ax
Data Rate
Combined peak data rate:
2.4 GHz + 5 GHz, 1.775 Gbps
2.4 GHz + 5 GHz, 1.775 Gbps
Fixed Service Port
Uplink: 1 x 10/100/1000Base-T Ethernet port
Downlink: 4 x 10/100/1000Base-T Ethernet ports
Downlink: 4 x 10/100/1000Base-T Ethernet ports
Input Power Supply
12 V DC/1 A power supply
PoE/PoE+ (802.3af/at)
PoE/PoE+ (802.3af/at)
External Power Supply
No
IP Rating
N/A
Mounting
Wall mount/ 86-mm and EU standard junction boxes
Radio Design
Dual-radio: 2.4 GHz (2×2), 5 GHz (2×2)
up to 4 spatial streams
up to 4 spatial streams
Antenna Type
Built-in intelligent antenna
Bluetooth
Bluetooth 5.0
Max. Power Consumption
10 W
Operating Temperature
–10°C to +50°C (14°F to +122°F)
Dimensions (W x D x H)
In-wall: 86 mm x 116 mm x 19 mm (3.39 in. x 4.57 in. x 0.75 in.)
Above-wall: 86 mm x 116 x mm x 24 mm (3.39 in. x 4.57 in. x 0.94 in.)
Above-wall: 86 mm x 116 x mm x 24 mm (3.39 in. x 4.57 in. x 0.94 in.)
| Dimensions and Weight | RG-AP180 |
| Unit dimensions (W x H x D) | In-wall: 86 mm x 116 mm x 19 mm (3.39 in. x 4.57 in. x 0.75 in.) Above-wall: 86 mm x 116 x mm x 24 mm (3.39 in. x 4.57 in. x 0.94 in.) |
| Shipping dimensions (W x D x H) | 128 mm x 96 mm x 59 mm (5.04 in. x 3.78 in. x 2.32 in.) |
| Unit weight | 0.22 kg (0.49 lbs) |
| Shipping weight | 0.31 kg (0.68lbs) |
| Mounting | Wall-mount Compatible with 86-mm and EU standard junction boxes (if you want to use the US standard junction box, purchase an RG-AP180-MNT mounting bracket separately) |
| Color | Elegant white |
| Wi-Fi Radio | RG-AP180 |
| Radio design | Dual-radio and up to four spatial streams: ● Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO |
| Operating frequencies | Radio 1: 802.11b/g/n/ax ● 2.400 GHz to 2.4835 GHz, ISM, channels 1 to 13 Radio 2: 802.11a/n/ac/ax ● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48 ● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64 ● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140 ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165 Note: Country-specific restrictions apply. |
| Data rates | Radio 1: 2.4 GHz, 574 Mbps ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (max.) ● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) Radio 2: 5 GHz, 1.2 Gbps ● Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (max.) ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (typical) ● Two spatial stream Multi-User (MU) MIMO for up to 1.2 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (max.) ● Two spatial stream Multi-User (MU) MIMO for up to 574 Mbps wireless data rate to up to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (typical) |
| Data rate set | The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT40) ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz radio ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80) ● 802.11ax: 8.6 to 1,200 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) |
| packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
| Antenna type | Built-in intelligent antenna (two 2.4 GHz antennas and two 5 GHz antennas) |
| Max. antenna gain | 2.4 GHz radio: 2 dBi 5 GHz radio: 2 dBi |
| Max. transmit power | 2.4 GHz radio: 20 dBm (17 dBm per chain) 5 GHz radio: 20 dBm (17 dBm per chain) Note: The transmit power is limited by local regulatory requirements. |
| Power increment | Configurable in increments of 1 dBm |
| Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
| Modulation types | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
