Synology RS822RP+ 4-Bay 1U Rackmount NAS [AMD Ryzen V1500B Quad-Core 2.2GHz, 2GB DDR4 ECC SODIMM, 4 x 2.5″/3.5″ SATA HDD/SSD, Up To 8-Bay w/ RX418 x 1, 4 x GbE RJ-45, 2 x USB3.2 Gen1, 1 x PCIe Gen3 x8 Slot, 1 x eSATA, Redundant 150W, Compatible w/ HAT3300 / HAT5300 HDD & SAT5210 SSD]
Reliable data management for remote and branch offices
The compact 1U 4-bay Synology RackStation RS822RP+/RS822+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.
2103/1074 MB/s sequential read/write throughput1
Scale up to 8 drives with Synology Expansion Unit RX4182
Built-in 4 x 1GbE ports with 10/25 GbE expansion option3
Up to 32 GB DDR4 ECC
RS822RP+/RS822+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS822RP+/RS822+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.
Furthermore, the RS822RP+ features a redundant power supply for an extra edge in service continuity.
The RS822RP+/RS822+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Provide secure and convenient cross-platform file access, sharing, and synchronization across multiplelocations.
Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications. Learn more
Access personal and shared data from mobile app, desktop client, web browser, or another Synology system: Any changes you make are automatically synced to other devices as soon as they are connected.
Integrate with Synology Office to enable concurrent editing on documents, spreadsheets, and slides, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files. Learn more

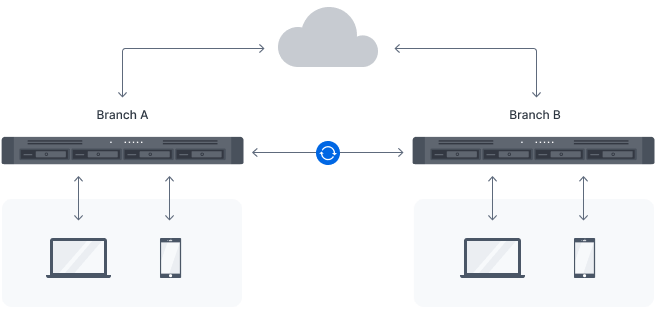

Utilize Hybrid Share to store large sets of data in the cloud, leveraging the powerful bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices.5 Learn more
With Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from reduced local storage footprint and bandwidth usage.
Frequently-accessed files are kept on the local NAS, allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full.

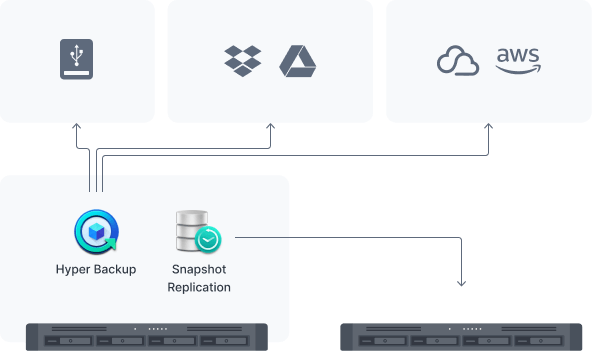

Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Securely back up Windows and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business. Learn more
Centralize backups of Microsoft 365 and Google Workspace data to protect it from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption. Learn more
Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage,5 public cloud platforms, USB devices, file servers, local folders, or other Synology systems.
Set and forget backup tasks with regular schedules, enhance security with granular user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning. Learn more
Snapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds. Learn more

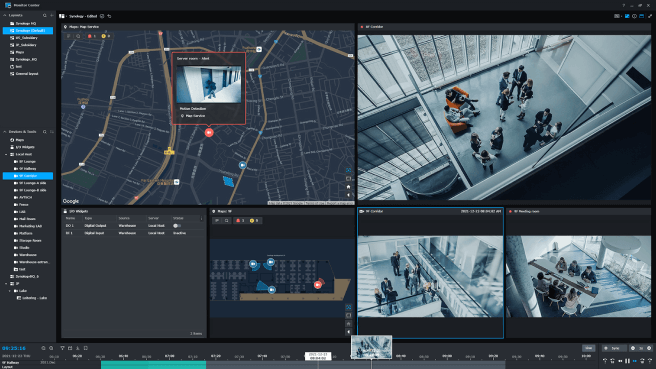

Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Connect up to 40 IP cameras from a selection of over 8,300 validated models thanks to Synology Surveillance Station‘s wide camera compatibility.6
Monitor live streams or watch recordings from web browser, desktop client, or the DS cam mobile app.
Footage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption.
Automatically locate new cameras within a set IP range, and configure units in batch via spreadsheet import or replicating settings to new cameras.
Stay on top of your deployment by previewing triggered events directly on multi-floor or multi-location maps, with online map integration for Google Maps and OpenStreetMap.
Take advantage of intelligent monitoring features such as motion detection, no idle zone, foreign object detection, and anomaly detection to cater the most common surveillance scenarios.
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS and featuring built-in data protection.7
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.
Manage, sync, and share files from multiple devices through a centralized platform.
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
Manage the health of your deployments and centrally administer updates with ease.
Manage user accounts and devices throughout your business with powerful directory services.
Conveniently manage your fleet of Synology NAS from a centralized console.
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Rely on Synology’s fast and secure edge storage solutions to ensure simple data accessibility where it is most needed.
Follow the 3-2-1 backup strategy to keep your data safe with Synology’s backup packages.
Minimize the threat posed by increasingly sophisticated ransomware and other malware with Synology solutions.
Performance figures are obtained through internal testing by Synology. Actual performance may vary depending on the testing environment, usage, and configuration. See performance charts for more information.
RS822RP+/RS822+ supports up to 8 drives with the addition of a Synology RX418 expansion unit, sold separately.
For the most up-to-date list of compatible NICs, please check our compatibility list.
SSD cache can be enabled using SNV3400/SNV3500 NVMe SSDs along with an M2D20 or E10M20-T1 adapter card, or by using a compatible 2.5″ SATA SSD. All devices sold separately.
C2 Storage for Hyper Backup and Hybrid Share requires purchase of an eligible annual or monthly subscription. A free trial is available for each newly registered device.
Surveillance Station includes 2 free licenses. Connecting more cameras and devices requires additional licenses. Learn more
Check the compatibility list for supported drives.
The warranty period starts from the date of purchase as stated on your purchase receipt. Visit https://www.synology.com/company/legal/warranty for more information.
Hardware Specifications | RS822RP+ | RS822+ | |
|---|---|---|---|
| CPU | CPU Model | AMD Ryzen V1500B | AMD Ryzen V1500B |
| CPU Quantity | 1 | 1 | |
| CPU Architecture | 64-bit | 64-bit | |
| CPU Frequency | 4-core 2.2 GHz | 4-core 2.2 GHz | |
| Hardware Encryption Engine | |||
| Memory | System Memory | 2 GB DDR4 ECC SODIMM | 2 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 2 GB (2 GB x 1) | 2 GB (2 GB x 1) | |
| Total Memory Slots | 2 | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | 32 GB (16 GB x 2) | |
| Notes |
| ||
| Storage | Drive Bays | 4 | 4 |
| Maximum Drive Bays with Expansion Unit | 8 (RX418 x 1) | 8 (RX418 x 1) | |
| Compatible Drive Type* (See all supported drives) |
|
| |
| Hot Swappable Drive* | |||
| Notes |
| ||
| External Ports | RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) | 4 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 2 | 2 | |
| eSATA Port | 1 | 1 | |
| Notes |
| ||
| PCIe | PCIe Expansion | 1 x Gen3 x8 slot (x4 link) | 1 x Gen3 x8 slot (x4 link) |
| Appearance | Form Factor (RU) | 1U | 1U |
| Size (Height x Width x Depth) | 44 mm x 480 mm x 518.6 mm | 44 mm x 480 mm x 492.6 mm | |
| Weight | 8.0 kg | 6.4 kg | |
| Rack Installation Support* | 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02) | 4-post 19″ rack (Synology Rail Kit – RKM114/RKS-02) | |
| Notes | The rail kit is sold separately | ||
| Others | System Fan | 40 mm x 40 mm x 2 pcs | 40 mm x 40 mm x 3 pcs |
| Fan Speed Mode |
|
| |
| Power Recovery | |||
| Noise Level* | 38.8 dB(A) | 27.4 dB(A) | |
| Scheduled Power On / Off | |||
| Wake on LAN / WAN | |||
| Power Supply Unit / Adapter | 150 W | 150 W | |
| Redundant Power Supply | – | ||
| AC Input Power Voltage | 100 V to 240 V AC | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | 50/60 Hz, Single Phase | |
| Power Consumption | 47.69 W (Access) 16.7 W (HDD Hibernation) | 47.69 W (Access) 16.7 W (HDD Hibernation) | |
| British Thermal Unit | 162.83 BTU/hr (Access) 57.02 BTU/hr (HDD Hibernation) | 162.83 BTU/hr (Access) 57.02 BTU/hr (HDD Hibernation) | |
| Notes |
| ||
| Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | 5% to 95% RH | |
| Certification |
|
| |
| Warranty | 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus | 3-year hardware warranty, extendable to 5 years with Extended Warranty Plus | |
| Notes |
|
| |
| Environment | RoHS Compliant | RoHS Compliant | |
| Packaging Content |
|
| |
| Optional Accessories |
|
| |
| Notes |
| ||
DSM Specifications | RS822RP+ | RS822+ | |
|---|---|---|---|
| Storage Management | Maximum Single Volume Size | 108 TB | 108 TB |
| Maximum Internal Volume Number | 64 | 64 | |
| SSD Read/Write Cache (Determining cache size) | |||
| SSD TRIM | |||
| Supported RAID Type |
|
| |
| RAID Migration |
|
| |
| Volume Expansion with Larger HDDs |
|
| |
| Volume Expansion by Adding a HDD |
|
| |
| Global Hot Spare Supported RAID Type |
|
| |
| Notes |
| ||
| File System | Internal Drives |
|
|
| External Drives |
|
| |
| File Services | File Protocol |
|
|
| Maximum Concurrent SMB/AFP/FTP Connections | 500 | 500 | |
| Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) | 2,000 | 2,000 | |
| Windows Access Control List (ACL) Integration | |||
| NFS Kerberos Authentication | |||
| Notes |
| ||
| Account & Shared Folder | Maximum Local User Accounts | 2,048 | 2,048 |
| Maximum Local Groups | 256 | 256 | |
| Maximum Shared Folder | 512 | 512 | |
| Maximum Shared Folder Sync Tasks | 16 | 16 | |
| Hybrid Share | Hybrid Share Folder Number | 10 | 10 |
| Hyper Backup | Folder and Package Backup | ||
| Entire System Backup | |||
| Notes | Full-system backup requires DSM 7.2 or later. | ||
| High Availability | Synology High Availability | ||
| Log Center | |||
| Syslog Events per Second | 800 | 800 | |
| Virtualization | VMware ESXi 6.5 and VAAI | ||
| Windows Server 2016 | |||
| Windows Server 2022 | |||
| Citrix Ready | |||
| OpenStack | |||
| General Specifications | Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported Browsers |
|
| |
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 | |
| Notes | For an updated list of supported browser versions, check the DSM Technical Specifications. | ||
Add-on Packages view the complete package list | |||
| Antivirus by McAfee (Trial) | |||
| Central Management System | |||
| Synology Chat | |||
| Suggested Concurrent Users | 150 | 150 | |
| Notes |
| ||
| Download Station | |||
| Maximum Concurrent Download Tasks | 80 | 80 | |
| SAN Manager | |||
| Maximum iSCSI Target Number | 128 | 128 | |
| Maximum LUN | 256 | 256 | |
| LUN Clone/Snapshot, Windows ODX | |||
| Synology MailPlus / MailPlus Server | |||
| Free Email Accounts | 5 (Additional accounts require purchase of licenses) | 5 (Additional accounts require purchase of licenses) | |
| Suggested Maximum Users | 750 | 750 | |
| Suggested Concurrent Users | 150 | 150 | |
| Maximum Server Performance | 1,484,000 emails per day, approx. 45GB | 1,484,000 emails per day, approx. 45GB | |
| Notes |
| ||
| Media Server | |||
| DLNA Compliance | |||
| Synology Photos | |||
| Facial Recognition | |||
| Object Recognition | |||
| Notes | Object recognition requires an upgrade of memory capacity to a minimum of 4 GB. | ||
| Snapshot Replication | |||
| Maximum Snapshots per Shared Folder | 1,024 | 1,024 | |
| Maximum of System Snapshots | 65,536 | 65,536 | |
| Surveillance Station | |||
| Default Licenses | 2 (Additional cameras require purchase of licenses) | 2 (Additional cameras require purchase of licenses) | |
| Suggested Maximum IP Cameras and Total FPS (H.264) |
|
| |
| Suggested Maximum IP Cameras and Total FPS (H.265) |
|
| |
| Notes |
| ||
| Synology Drive | |||
| Recommended Number of Concurrent Sync Clients | 550 (the number of connections that can be maintained when the recommended number of hosted files was reached) | 550 (the number of connections that can be maintained when the recommended number of hosted files was reached) | |
| Recommended Number of Hosted Files | 50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) | 50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) | |
| Notes |
| ||
| Synology Office | |||
| Suggested Maximum Users | 4,500 | 4,500 | |
| Suggested Concurrent Users | 1,800 | 1,800 | |
| Notes |
| ||
| Video Station | |||
| Virtual Machine Manager | |||
| Recommended Virtual Machine Instances | 8 (Learn more) | 8 (Learn more) | |
| Recommended Virtual DSM Number (Licenses required) | 8 (including 1 Free License) | 8 (including 1 Free License) | |
| Notes | The specifications vary depending on system configuration and memory size. | ||
| VPN Server | |||
| Maximum Connections | 40 | 40 | |
