Give your business the data protection and service availability it needs
Simplify and centralize your data management infrastructure with Synology SA3200D. Storage controller redundancy powered by Synology High Availability automatically minimizes downtime to under a minute1, delivering outstanding cost effectiveness in just a 2U footprint.
Dual storage controllers
Shared storage design
Automatic system-level protection
Up to 36 drives for 576 TB2

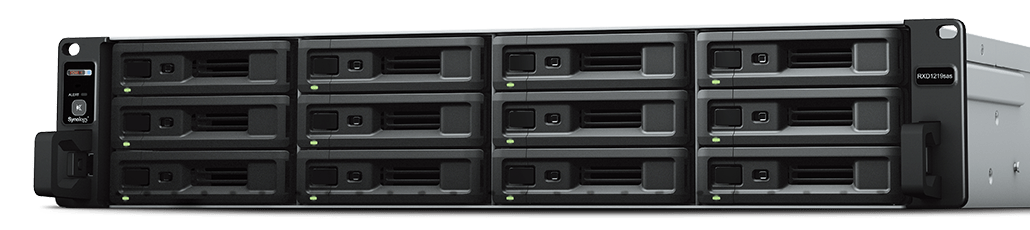

SA3200D supports two RXD1219sas expansion units for up to 36 SAS 3.5”/2.5” bays. Scale up to 576 TB2 without downtime to quickly meet new demands.
SA3200D integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.
Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.
On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Virtual Machine Manager enables you to test new software in sandboxes, isolate your customers’ machines, and increase the flexibility of your server. You can easily run Windows, Linux, and Virtual DSM on your Synology NAS by just a few steps.
Perfectly clone and restore a virtual machine within seconds.
Create multiple isolated virtual machines for subsidiary business units or departments.
At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.
SRS provides free advance replacement units as early as the next business day in selected regions, maximizing the service uptime for your mission-critical storage and ensuring your business continuity. Learn more
Real-time system-level protection with automatic failover mechanism to maximize service availability.
Schedulable and instantaneous data protection for shared folders and iSCSI LUNs for disaster prevention.
Conveniently manage your fleet of Synology NAS from a centralized console.
Store multiple backup versions with block-level incremental data backup and cross-version deduplication.
Integrated, modern, and license-free backup & instant recovery solution for VMware, Windows, Microsoft 365, and Google Workspace.
Run various operating systems in isolated sandboxes. Seamlessly clone and restore virtual machines.
Engineered to handle high-intensity workloads, Synology hard drives consistently deliver top-grade performance.3
DSM Specifications | ||
|---|---|---|
| Maximum Single Volume Size |
| |
| Maximum Internal Volume Number | 64 | |
| SSD Read/Write Cache (Determining cache size) | ||
| SSD TRIM | ||
| RAID Group | ||
| Supported RAID Type |
| |
| RAID Migration |
| |
| Volume Expansion with Larger HDDs |
| |
| Volume Expansion by Adding a HDD |
| |
| Global Hot Spare Supported RAID Type |
| |
| Notes |
| |
| Internal Drives |
| |
| File Protocol |
| |
| Maximum Concurrent SMB/AFP/FTP Connections | 1,200 | |
| Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) | 6,000 | |
| Windows Access Control List (ACL) Integration | ||
| NFS Kerberos Authentication | ||
| Notes |
| |
| Maximum Local User Accounts | 16,000 | |
| Maximum Local Groups | 512 | |
| Maximum Shared Folder | 512 | |
| Maximum Shared Folder Sync Tasks | 32 | |
| Hybrid Share Folder Number | 30 | |
| Folder and Package Backup | ||
| Entire System Backup | ||
| Notes | Full-system backup requires DSM 7.2 or later. | |
| Synology High Availability | ||
| Notes | Synology High Availability is a built-in package for SA3200D to maximize service uptime. SA3200D does not support forming a high-availability cluster with another server unit. | |
| Syslog Events per Second | 3,000 | |
Virtualization | VMware ESXi 6.5 and VAAI | |
| Windows Server 2016 | ||
| Windows Server 2019 | ||
| Windows Server 2022 | ||
| Citrix Ready | ||
| OpenStack | ||
| Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV | |
| Supported Browsers |
| |
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 | |
| Notes | For an updated list of supported browser versions, check the DSM Technical Specifications. | |
Add-on Packages view the complete package list | ||
Antivirus by McAfee (Trial) | ||
| Suggested Maximum Users | 4,000 | |
| Suggested Concurrent Users | 500 | |
| Notes | When applicable, tested systems are configured with maximum memory and set to allow the maximum number of connections. | |
| Maximum iSCSI Target Number | 256 | |
| Maximum LUN | 512 | |
| LUN Clone/Snapshot, Windows ODX | ||
| Notes | iSCSI Manager has been renamed to SAN Manager in DSM 7.0. | |
| Free Email Accounts | 5 (Additional accounts require purchase of licenses) | |
| Suggested Maximum Users | 2,500 | |
| Suggested Concurrent Users | 500 | |
| Maximum Server Performance | 3,595,000 emails per day, approx. 109 GB | |
| Notes |
| |
| Maximum Snapshots per Shared Folder | 1,024 | |
| Maximum of System Snapshots | 65,536 | |
| Default Licenses | 2 (Additional cameras require purchase of licenses) | |
| Suggested Maximum IP Cameras and Total FPS (H.264) |
| |
| Suggested Maximum IP Cameras and Total FPS (H.265) |
| |
| Notes |
| |
| Recommended Number of Concurrent Sync Clients | 1,800 (the number of connections that can be maintained when the recommended number of hosted files was reached) | |
| Recommended Number of Hosted Files | 50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) | |
| Notes |
| |
| Suggested Maximum Users | 7,000 | |
| Suggested Concurrent Users | 2,800 | |
| Notes |
| |
| Recommended Virtual Machine Instances | 8 (Learn more) | |
| Recommended Virtual DSM Number (Licenses required) | 8 (including 1 Free License) | |
| Notes | The specifications vary depending on system configuration and memory size. | |
| Maximum Connections | 60 | |
Hardware Specifications | ||
|---|---|---|
Controller | Number of Controller Module | 2 |
CPU | CPU Model | Intel Xeon D-1521 |
| CPU Quantity | 1 (per controller) | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 4-core 2.4 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine | ||
Memory | System Memory | 8 GB DDR4 ECC UDIMM (per controller) |
| Memory Module Pre-installed | 8 GB (8 GB x 1) (per controller) | |
| Total Memory Slots | 4 (per controller) | |
| Maximum Memory Capacity | 64 GB (16 GB x 4) (per controller) | |
| Notes |
| |
Storage | Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 36 (RXD1219sas x 2) | |
| Compatible Drive Type* (See all supported drives) |
| |
| Hot Swappable Drive* | ||
| Notes | “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. | |
External Ports | RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) (per controller) |
| RJ-45 10GbE LAN Port | 1 (per controller) | |
| Expansion Port | 1 | |
PCIe | PCIe Expansion | 1 x Gen3 x8 slot (x8 link) (per controller) |
Appearance | Form Factor (RU) | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm | |
| Weight | 19.7 kg | |
| Rack Installation Support* | 4-post 19″ rack (Synology Rail Kit – RKS-02) | |
| Notes | The rail kit is sold separately | |
Others | System Fan | 60 mm x 60 mm x 2 pcs |
| Fan Speed Mode |
| |
| Easy Replacement System Fan | ||
| Power Recovery | ||
| Noise Level* | 51.3 dB(A) | |
| Power Supply Unit / Adapter | 500 W | |
| Redundant Power Supply | ||
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption | 417.48 W (Access) | |
| British Thermal Unit | 1425.45 BTU/hr (Access) | |
| Notes |
| |
Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Certification |
| |
Warranty | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment | RoHS Compliant | |
Packaging Content |
| |
Optional Accessories |
| |
| Notes | All memory modules will operate at the maximum frequency specified by the CPU manufacturer. | |
