WIRELESS | |
---|---|
Working Modes | Range Extender/Access Point |
HARDWARE FEATURES | |
---|---|
Interface | 1 x 10/100M Ethernet Port (RJ45) |
Ports | 1 x 10/100Mbps Ethernet Port (RJ45) |
Button | WPS Button, Reset Button |
Input Power | 100-240V~50/60Hz |
Power Consumption | 9.5W(max power consumption) |
Dimensions ( W x D x H ) | 3.5×1.4×4.9 in. (89×35.0×124.1 mm) |
Antenna | 2 External Antennas |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
Frequency | 2.4GHz & 5GHz(11ac) |
Signal Rate | 5 GHz:Up to 433 Mbps 2.4 GHz:Up to 300 Mpbs |
Reception Sensitivity | 5 GHz: 11a 6Mbps: -94dBm, 11a 54Mbps: -77dBm 11ac HT20 MCS0: -94dBm, 11ac HT20 MCS8: -71dBm 11ac HT40 MCS0: -92dBm, 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm2.4 GHz: 11g 54Mbps: -78dBm, 11n HT20 MCS7: -76dBm 11n HT40 MCS7: -74dBm |
Wireless Modes | |
Wireless Functions | Enable/Disable Wireless Radio, Wireless Statistics |
Wireless Security | 64/128-bit WEP, WPA/WPA-PSK2/WPA2-PSK2 encryptions |
Transmission Power | 2.4 GHz ≤20dBm, 5 GHz ≤30dBm |
OTHERS | |
---|---|
Certification | CE, RoHS |

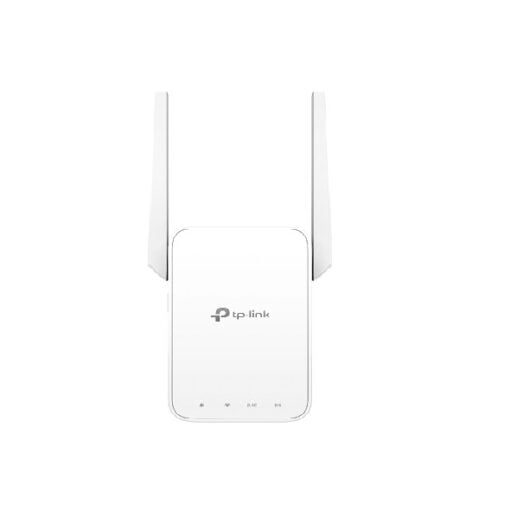

Package Contents | Wi-Fi Range Extender RE215 Quick Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
