CAMERA | |
---|---|
Image Sensor | 1/3” |
Lens | F/NO: 2.0±5%; Focal Length: 3.15mm±5% |
Night Vision | 850 nm IR LED up to 49 ft/15m |
Interface & Button | 1× SYNC/RESET Button |
Hub Compatibility | Compatible with H200 (Included) |
View Range | 114° |
Resolution | 1080p Full HD (1920 × 1080 px) |
HUB | |
---|---|
Device Compatibility | Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells. All Supported Products> |
Connection Capacity | Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells |
Interface & Button | 1× Ethernet Port 1× RESET Button 1× SYNC Button 1× MicroSD Card Slot (Up to 512 GB) |
VIDEO & AUDIO | |
---|---|
Maximum Resolution | Full HD 1080P (1920 × 1080 px) |
Frame Rate | 15 fps |
Digital Zoom | 9× |
Video Compression | H.264 |
Live View | Yes |
Image Enhancement | 3D DNR WDR |
Audio Input & Output | Built-in Microphone and Speaker |
Audio Communication | Two-Way Audio with Noise Cancellation |
Siren Volume | Camera: 92 dB (Level measured at 4-inch/10-cm distance) Hub: 100 dB (Level measured at 4-inch/10-cm distance) |
STORAGE | |
---|---|
Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) General Information about using MicroSD Cards > |
Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
VIDEO | |
---|---|
Frame Rate | 15 fps |
Video Streaming | 1080p |
Video Compression | H.264 |
Audio Compression | G.711 |
DETECTION AND NOTIFICATIONS | |
---|---|
Sensor | Single Motion Sensor (FOV: 110° horizontal) Single Ambient Light Sensors |
AI Detection | Motion Detection Person Detection Pet Detection Vehicle Detection |
Activity Zones | Yes |
Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
AUDIO | |
---|---|
Audio Communication | 2-way audio |
Audio Input & Output: | Built-in microphone and speaker |
NETWORK | |
---|---|
Network Connectivity | Connect via Wi-Fi or Ethernet |
Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
Protocol | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
Ethernet Port | 1× 10/100 Mbps RJ45 Port on Hub |
Wireless Security | WPA/WPA2-PSK |
Security | 128 bit AES encryption with SSL/TLS |
Wi-Fi Protocol | IEEE 802.11b/g/n, 2.4 GHz |
Frequency | 2.4 GHz |
SECURITY | |
---|---|
Security | 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
POWER | |
---|---|
Power Source | Hub: 9V DC Power AdapterCamera: 5200 mAh Removable Rechargeable Lithium-ion Battery Optional Solar Panel: Tapo A200 (Sold separately) |
Input Voltage | Camera Battery Pack Adapter Input: 100-240 V, 50/60 Hz Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A |
Output Voltage | Camera Battery Pack Adapter Output: 5.0 V, 1.0 A Hub Adapter Output: 9.0 V, 0.85 A |
GENERAL | |
---|---|
Smart Integration | Google Assistant, Amazon Alexa |
Weather Resistance | Camera: IP65 |
System Requirements | Tapo App: iOS 11.0 or higher, Andriod 5.0 or higher |
Mounting Options | Tabletop Ceiling-Mounted Wall-Mounted |
Operating Temperature | Camera: -20℃~45℃ Hub: 0℃~40℃ |
Storage Temperature | -20℃~60℃ |
Operating Humidity | 10%~90% RH, Non-condensing |
Storage Humidity | 5%~90% RH, Non-condensing |
Charging Temperature | 0-55℃ |
Dimensions | Camera Dimensions: 4.35 × 2.52 × 2.52 in (110.6 × 64.2 × 64.2 mm) Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm) |

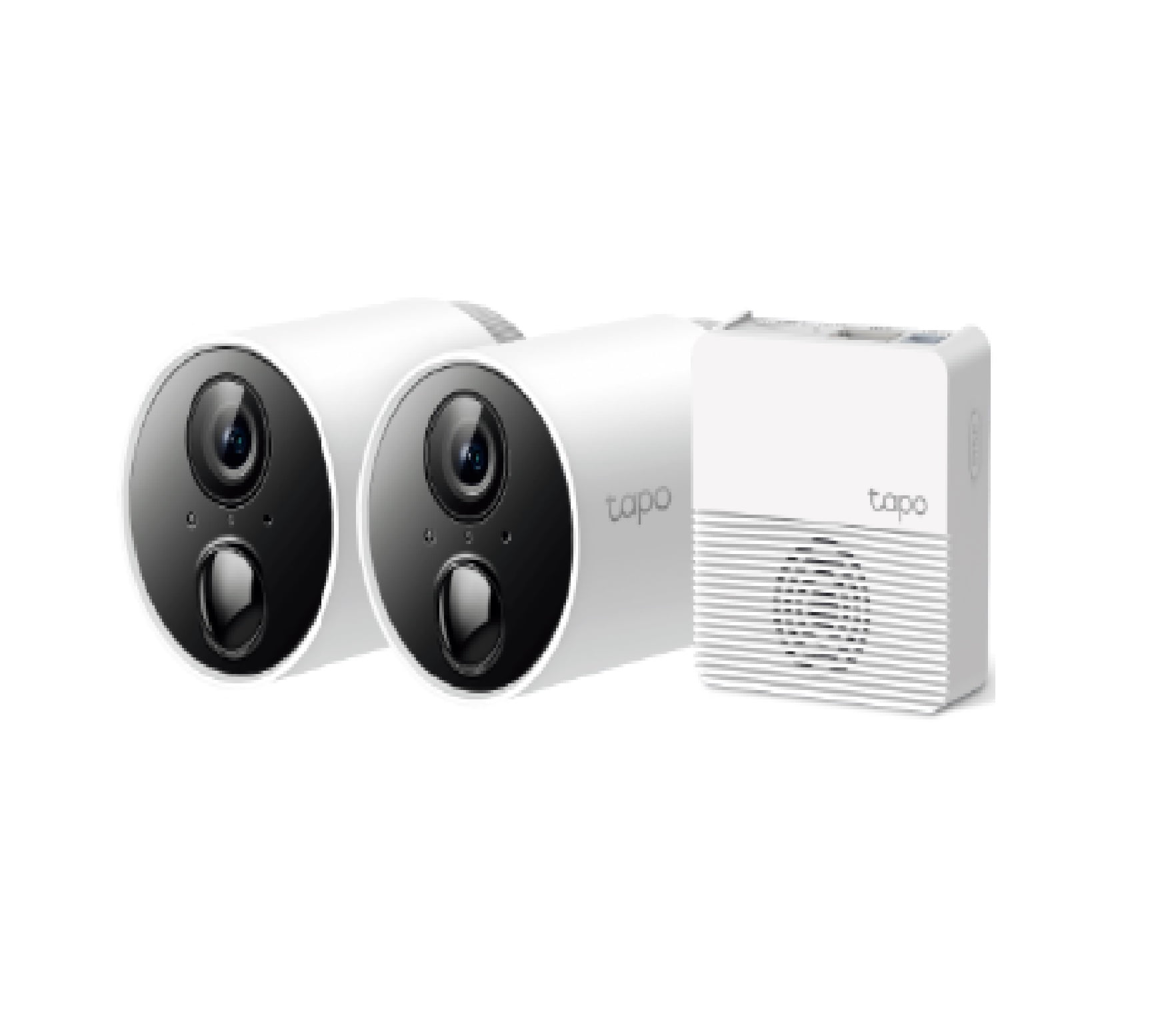

Package Contents | Tapo C400 Cameras Tapo A100 Batteries Tapo H200 Hub USB Adapter USB Adapter Cable DC Power Adapter Mounting Anchors Mounting Screws Mounting Templates Camera Brackets Quick Start Guide RJ45 Ethernet Cable |
Certifications | CE, FCC, RoHS, RCM |
ACTIVITY NOTIFICATIONS | |
---|---|
Input Trigger | Motion detection, Person detection, Pet detection, Vehicle detection. |
Output Notification | Notification, Snapshot(Tapo care), Clips(Tapo care). |
ENVIRONMENT | |
---|---|
Operating Temperature | -20℃~45℃(-4°F ~113 °F ) |
Storage Temperature | -20℃~60℃ (-4°F~140°F) |
Operating Humidity | 10%~90%RH, Non-condensing |
Storage Humidity | 5%~90%RH, Non-condensing |
HARDWARE | |
---|---|
Button | Camera Button: Reset/SYNC Button Hub Button: Reset Button; SYNC Button |
Indicator LED | Camera Indicator LED: System LED Hub Indicator LED: System LED |
Adapter Input | Camera Adapter Input: 100-240V, 50/60Hz Hub Adapter Input: 100-240V, 50/60Hz, 0.3A |
Adapter Output | Camera Adapter Output: 5.0V, 1.0A Hub Adapter Output: 9.0V, 0.85A |
Dimensions (W x D x H) | Camera Dimensions (Lx W x H): 4.35 x 2.52 x 2.52in. (110.6*64.2*64.2mm) Hub Dimensions (L x W x H): 2.8 x 2.8 x 1.2 in. (71.45*71.45*31.25mm) |
OTHERS | |
---|---|
Certification | CE, RoHS, RCM |
Package Contents | Tapo C400 Cameras (Battery Included) Tapo H200 Hub USB Adapter USB Adapter Cable DC Power Adapter Mounting Screws Mounting Templates Camera Brackets Quick Start Guide RJ45 Ethernet Cable |
