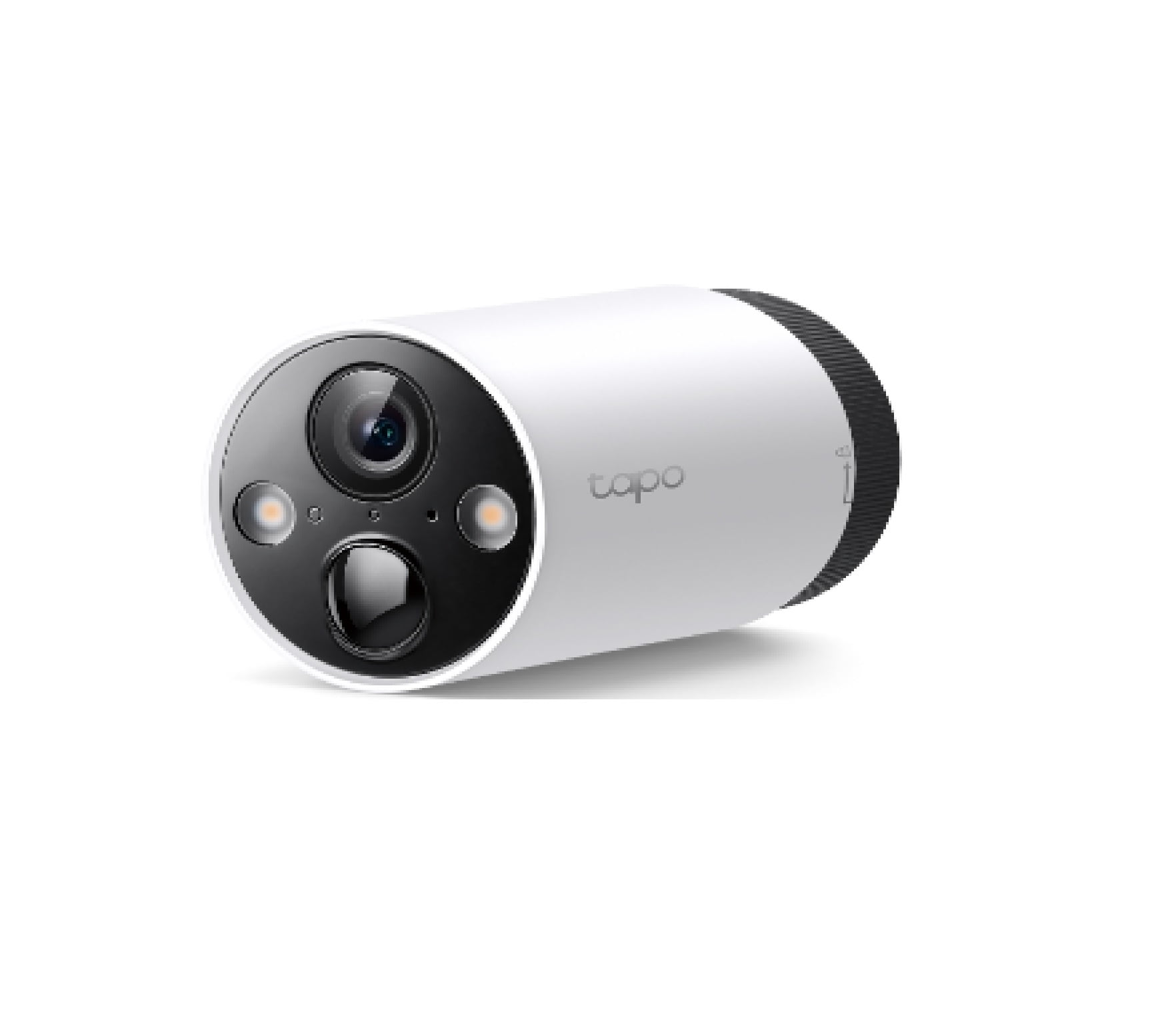

TPLINK SMART WIRE-FREE SECURITY CAMERA (Tapo C420)

CAMERA
Image Sensor 1/3“
Lens F/NO: 1.61±10%; Focal Length: 3.18mm±5%
Night Vision 850 nm IR LED up to 49 ft/15m
Lighting 2× Built-in Spotlights
Interface & Button 1× SYNC/RESET Button
Hub Compatibility Compatible with Tapo H200(Sold separately)
Viewing Angle 113°
Resolution 2K QHD (2560 × 1440 px)
VIDEO & AUDIO
Maximum Resolution 2K QHD 4MP (2560 × 1440 px)
Frame Rate 15 fps / 20 fps
Digital Zoom 12×
Video Compression H.264
Live View Yes
Image Enhancement 3DNR
WDR
Audio Input & Output Built-in Microphone and Speaker
Audio Communication Two-Way Audio with Noise Cancellation
Siren Volume Camera:
92 dB (Level measured at 4-inch/10-cm distance)
Hub:
100 dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage MicroSD Card Slot on Hub (Up to 512 GB)
*Hub sold separately.
General Information about using MicroSD Cards >
Cloud Storage Tapo Care Cloud Storage Services (Subscription required)
DETECTION AND NOTIFICATIONS
Sensor Single Motion Sensor (FOV: 110° horizontal)
Single Ambient Light Sensors
AI Detection Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Activity Zones Yes
Output Notification System Notification
System Notification with Snapshot (Tapo Care Services)
AUDIO
Audio Communication 2-way audio
Audio Input & Output Built-in microphone and speaker
NETWORK
Network Connectivity Connect via Wi-Fi or Ethernet
Wireless Connectivity IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Sub-1G, 868MHz or 922MHz (Used for local connection between camera and hub)
Protocol TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Ethernet Port 1× 10/100 Mbps RJ45 Port on Hub
*Hub sold separately.
Wireless Security WPA/WPA2-PSK
Wi-Fi Protocol IEEE 802.11b/g/n, 2.4 GHz
Frequency 2.4 GHz
SECURITY
Security 128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK
POWER
Power Source Camera：
6700 mAh Removable Rechargeable Lithium-ion Battery
Optional Solar Panel: Tapo A200 (Sold separately)
Input Voltage Camera Battery Pack Adapter Input: 100-240 V, 50/60 Hz
Output Voltage Camera Battery Pack Adapter Output: 5.0 V, 1.0 A
GENERAL
Smart Integration Google Assistant, Amazon Alexa
Weather Resistance Camera: IP65
System Requirements Tapo App: iOS 11.0 or higher, Andriod 5.0 or higher
Mounting Options Tabletop
Ceiling-Mounted
Wall-Mounted
Operating Temperature Camera:-20℃~45℃
Storage Temperature -20℃~60℃
Operating Humidity 10%~90% RH, Non-condensing
Storage Humidity 5%~90% RH, Non-condensing
Charging Temperature 0-55℃
Dimensions Camera Dimensions: 4.35 × 2.52 × 2.52 in (110.6 × 64.2 × 64.2 mm)
Package Contents Tapo C420 Camera
Tapo A100 Battery
USB Adapter
USB Adapter Cable
Mounting Anchors
Mounting Screws
Mounting Template
Camera Bracket
Quick Start Guide
Certifications CE, FCC, RoHS, RCM
ACTIVITY NOTIFICATIONS
Input Trigger Motion detection, Person
detection, Pet detection, Vehicle detection.
Output Notification Notification,Snapshot(Tapo care),Clips(Tapo
care).
ENVIRONMENT
Operating Temperature -20℃~45℃(-4°F ~113 °F )
Storage Temperature -20℃~60℃ (-4°F~140°F)
Operating Humidity 10%~90%RH, Non-condensing
Storage Humidity 5%~90%RH, Non-condensing
PACKAGE CONTENTS
Package Contents Tapo C420 Cameras (Battery Included)
USB Adapter
USB Adapter Cable
Mounting Screws
Mounting Templates
Camera Brackets
Quick Start Guide
HARDWARE
Button Camera Button: Reset/SYNC Button
Indicator LED Camera Indicator LED: System LED
Adapter Input Camera Adapter Input: 100-240V, 50/60Hz
Adapter Output Camera Adapter Output: 5.0V, 1.0A
Dimensions (W x D x H) Camera Dimensions: 4.35 x 2.52 x 2.52in.
(110.6*64.2*64.2mm)
VIDEO/IMAGE
Video Compression H.264
Frame Rate & Resolutions 15/20 fps
Video Streaming 2K QHD
