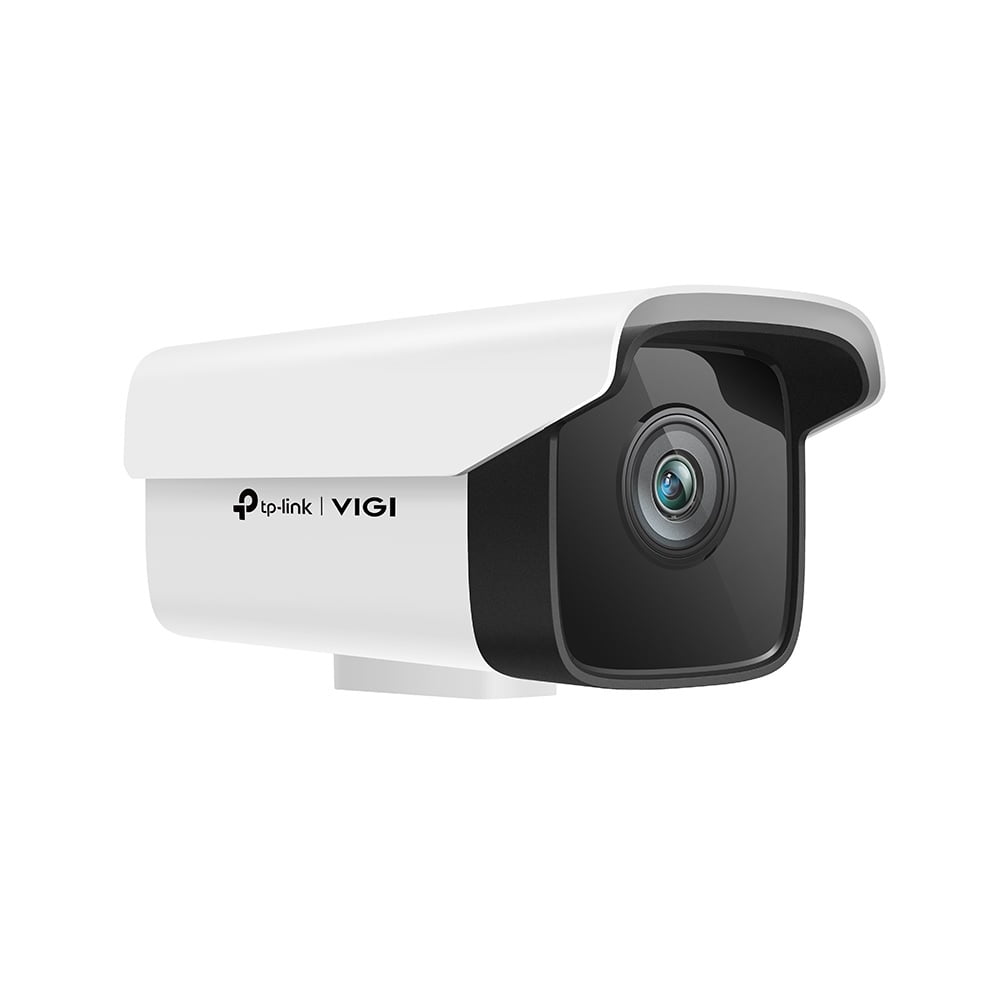

Model | VIGI C300HP-6 |
---|---|
Condition | New |
Product Type | Security Cameras |
Advanced Features | NETWORK Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS API ONVIF Simultaneous Live View 4 Main Streams & 3 Sub-Streams, or 3 Main Streams & 5 Sub-Streams GENERAL Operating Temperature -30–60 °C Certifications CE, FCC, RCM, BSMI, VCCI, IP67, RoHS Dimensions( H X W X D ) 164.9 × 87.4 × 83.4 mm Material Plastic Weight 283.5g Power Requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening CAMERA Image Sensor 1/2.7” Progressive Scan CMOS Lens 6 mm Aperture 6 mm: F2.0 Lens Mount M12 Viewing Angle 6 mm, horizontal FOV: 54°, vertical FOV: 31°, diagonal FOV: 62° Day/Night Mechanism IR Cut Filter IR Working Distance 30m Minimum Illumination Color: 0.1 Lux@F2.0; 0 Lux with IR Weatherproof Rating IP67 Digital Noise Reduction 3D DNR WDR DWDR VIDEO/IMAGE Video Compression Main stream: H.265/H.264 Sub-Stream: H.265/H.264 Frame Rate & Resolutions Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240 Video Streaming Main Stream Sub-Stream Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software Video Bit Rate 64 Kbps to 6 Mbps SMART FEATURE-SET Smart Event Area Intrusion Detection, Line-Crossing Detection Basic Event Motion Detection, Camera Tampering Detection, Exception ( illegal login) Linkage Method Trigger Notification: ONVIF, HTTPS Region of Interest 1 Region INTERFACES Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port Alarm – Button – Video Output – |
