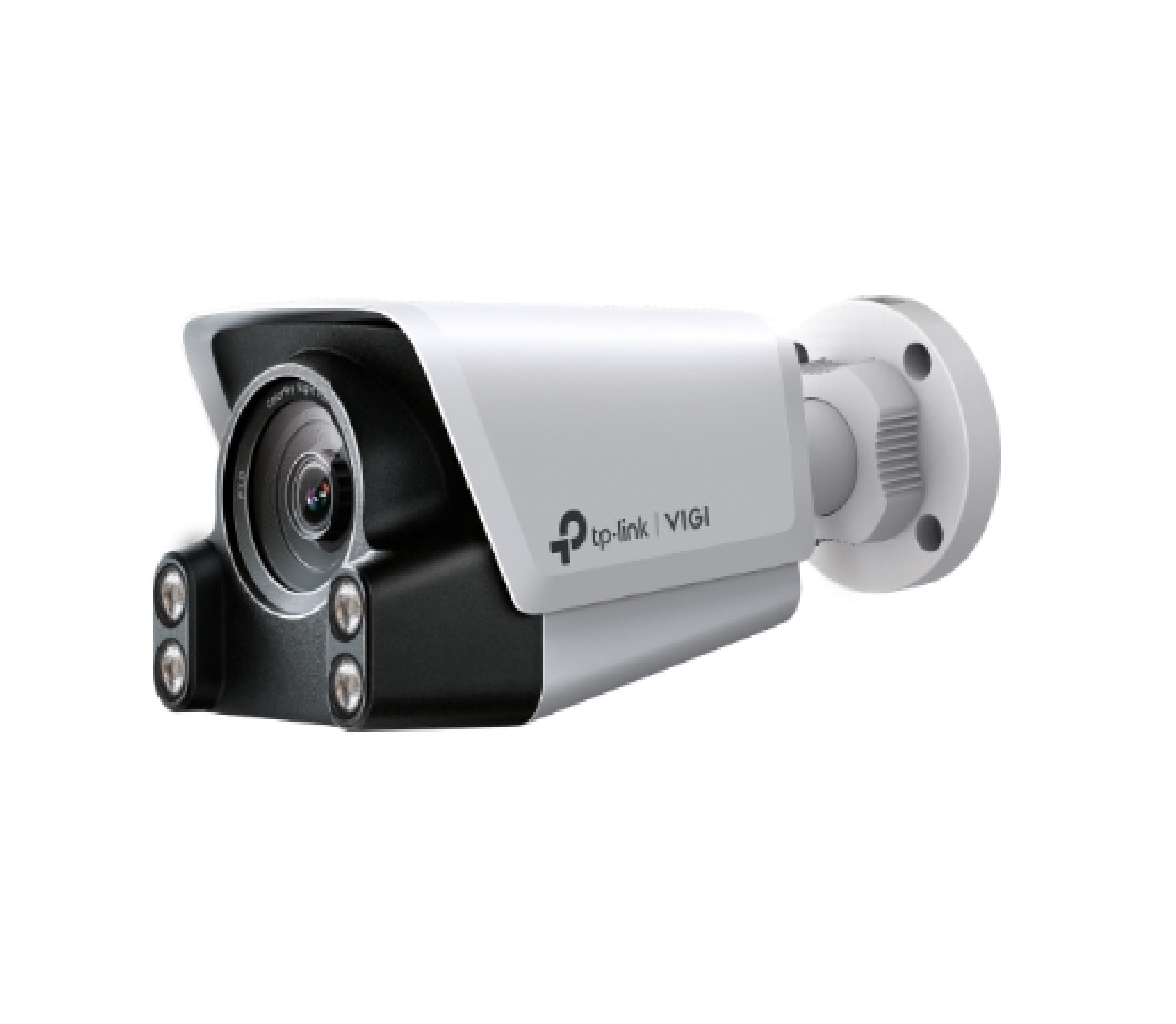

TPLINK VIGI 4MP OUTDOOR COLORPRO NIGHT VISION BULLET NETWORK CAMERA (4MM) (VIGI C340S)

₱9,520.00

Ultra-Low Light Color Night Vision: Capture 24-hour 4MP high-quality and colorful video even in ultra low-light conditions without any supplemental lights.
Face Recognition: Efficiently enhances access management and attendance control while better protecting privacy^§.
People & Vehicle Analytics: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency^§.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
120dB WDR Technology: Enable crystal-clear images in high contrast scenes.
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
IP67 Waterproof: Reliable IP67 for stable outdoor performance.
Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

SKU: TPLINK VIGI 4MP OUTDOOR COLORPRO NIGHT VISION BULLET NETWORK CAMERA (4MM) (VIGI C340S) Categories: Bullet, TPLink Tag: TPLINK VIGI 4MP OUTDOOR COLORPRO NIGHT VISION BULLET NETWORK CAMERA (4MM) (VIGI C340S)

Description

CAMERA
Image Sensor	1/1.8” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Aperture	4 mm: F1.0 6 mm: F1.0
Lens	Fixed focal lens (4 mm / 6 mm)
Lens Mount	M12
Minimum Illumination	Color: 0.0005 Lux; 0 Lux with white light
Day/Night Mechanism	NA
Day/Night Switch	Day/Night/Auto/Schedule-Switch
IR LED	N/A
White LED	Quantity: 4
Digital Noise Reduction	3D DNR
WDR	120dB
Weatherproof Rating	IP67
Illumination Distance	30 m
Viewing Angle	4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7° 6mm: Horizontal FOV: 57.1°, vertical FOV: 30.2°, Diagonal FOV: 67.2°

LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.0
FOV	4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7°
Lens Mount	M16*P 0.5
DORI Distance	4 mm: Detect: 70 m (231 ft) Observe: 29 m (96 ft) Recognize: 14 m (46 ft) Identify: 7 m (23 ft)

ANGLE ADJUSTMENT (MANUAL)
Range	Pan: -90° to 90° Tilt: -90° to 90°

ILLUMINATOR
IR LED	N/A
White LED	Quantity: 4 Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	2688 x 1520
Main Stream	Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640×480, 352×288, 320×240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement	BLC/3D DNR/HLC
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage	NAS (NFS, SMB/ CIFS)

ALARM AND EVENT MANAGEMENT
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push

DEEP LEARNING FUNCTION
Multi-Target-Type Detection	Supports Simultaneous Detection and Capture of Human Body and Vehicle
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Face Capture	Support
Face Comparison	Support
Perimeter Protection	Motion, Line-Crossing, Intrusion, Region Entering, Region Exiting, Loitering. Supports Alarm Triggering by Specified Target Types (Human and Vehicle)

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
Button	Reset Button
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A

GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Dimensions( H X W X D )	99 × 102 × 236 mm
Materia	Front Cover: Mental Other: Plastic
Material	Front Cover: Metal Back Cover: Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Consumption	12V DC: Max 10.1W PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Protection	IP67
Product Dimensions (L x W x H)	102× 236× 99 mm
Certifications	CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

VIDEO/IMAGE
Video Compression	Main stream: H.265+/H.265/H.264+//H.264 Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688×1520,2560×1440, 2304×1296, 2048×1280, 1920×1080,1280×720 Sub-Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640×480, 352×288, 320×240
Video Streaming	Main Stream Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement	BLC, HLC, 3D DNR
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURE-SET
Smart Event	Intrusion Detection, Object Abandoned/Removal Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, Line Crossing Detection, Human Detection, Vehicle Detection
Basic Event	Motion detection, Camera Tampering, Scene Change Detection, Exception(illegal login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region
